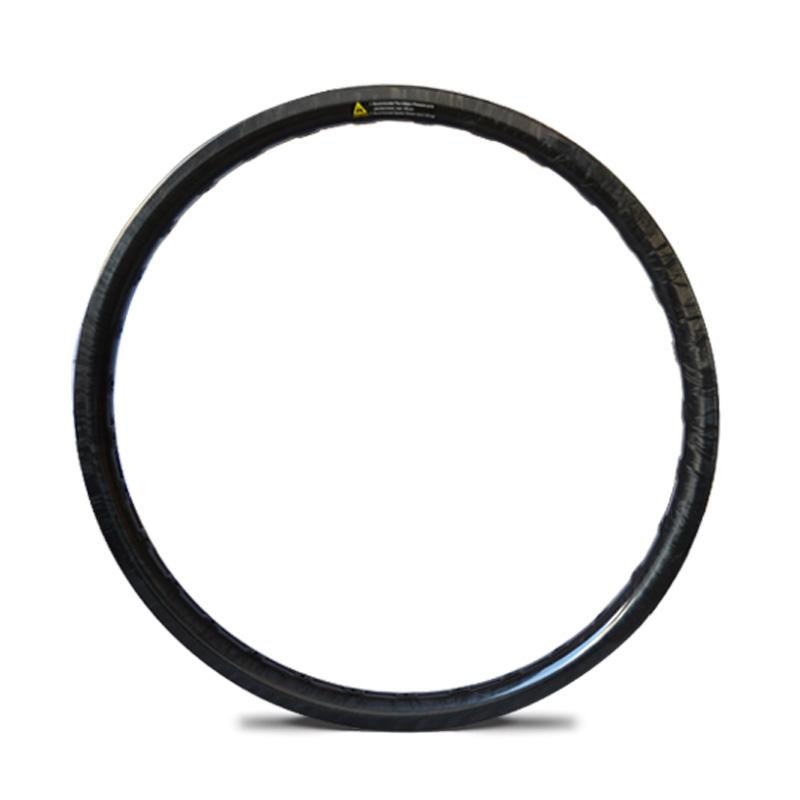

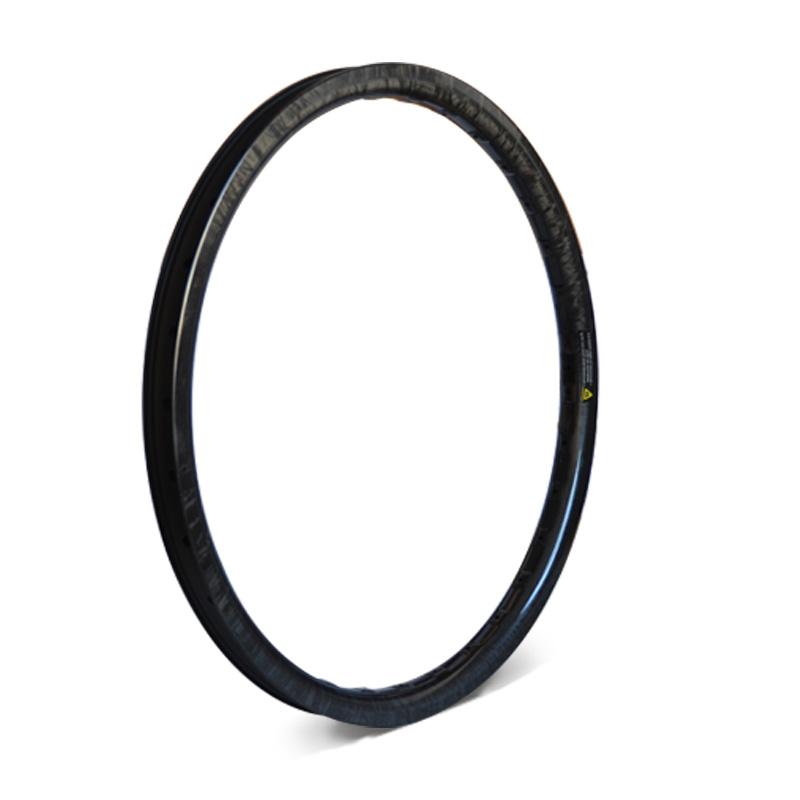

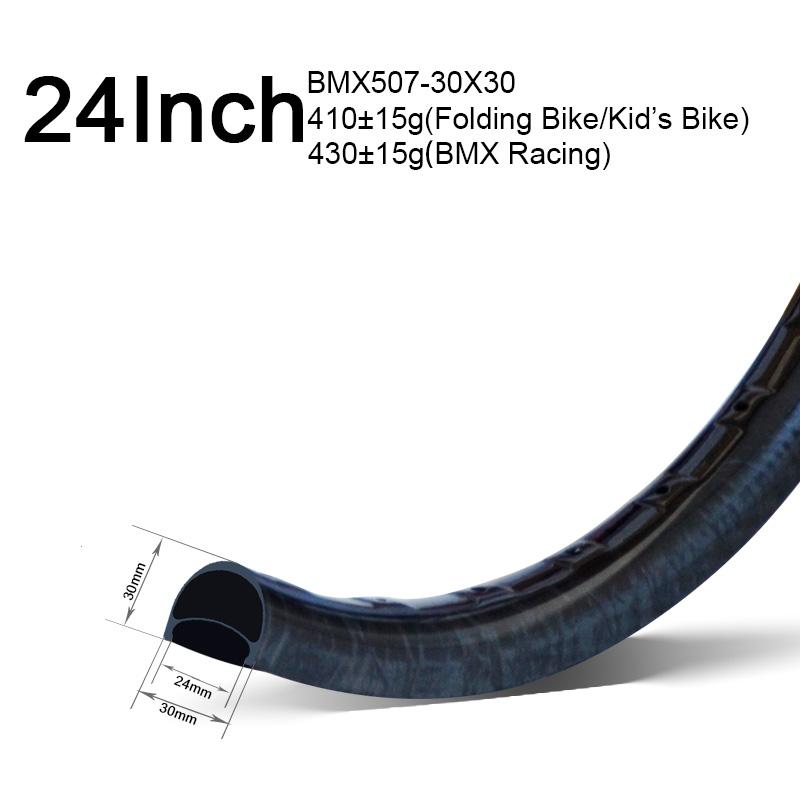

24 Inch 30mm Width 30mm Depth 507 Carbon BMX Rims
Product Feature
- Super lightweight,24 inch 30mm wide 30mm deep carbon 507 rim are constructed from Toray T700 & T800 that structure minimize the rotational weight.
- 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
- Specific resin rims brake track is designed for BMX race and street. Carbon specific pad required.
- Wider Design. gives a slightly larger volume to the tyre, meaning you can run less air pressure for a better ride, while still maintaining rolling speed.
- The inside of the rim had been especially designed for high pressure tyre mounting. The rims are super stiff and strong, yet still achieve a low weight.
- Low Profile Design for optimum stiffness and damping. Reduces the buffeting effect of cross winds on outdoor tracks. Don’t be afraid of crosswinds at the track anymore!
- Carbon 507 rim is used for folding bike/kid's bike（410±15g），for bmx racing（430±15g）.
- Bmx bike rims 507 are Clincher tire type.
Specification
|
Item No.: |
BXM507-30X30 |
|
Rim type: |
24 inch bmx bike 507 rims |
|
Material: |
Toray T700&T800 carbon fiber |
|
Finish: |
Matte / Glossy |
|
Weave: |
UD / 3K / 12K |
|
Depth: |
30 mm |
|
Width: |
30 mm |
|
Tire Type: |
Clincher |
|
Weight: |
410g+/-15g (For folding bike/kid's bike), 430g+/-15g (For bmx racing) |
|
Valve : |
Standard Schrader / Presta valve |
|
Drills: |
28H , 32H,36H |

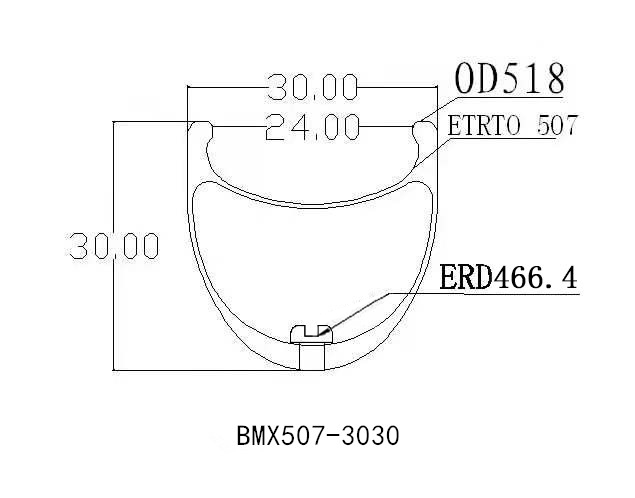

Product Geometry
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
