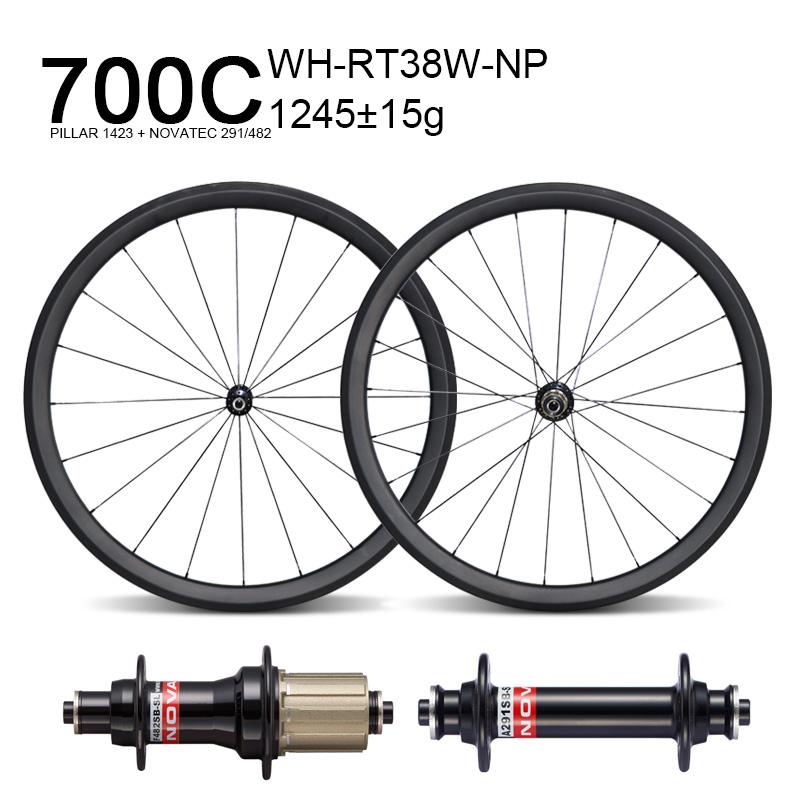

GoFast 700C Novatec 291 482 Hubs 23mm Width 38mm Depth Tubular Road Wheels
Product Feature
- Ultra light material. The rims are made from premium Toray T700 and T800 carbon fiber for the best strength-to-weight ratio at any cost.
- UCI Approved Wheels. DCH tests to all recognized international standards and its internal factory standards which are more crucial than international regulations. All our carbon rims and wheels can pass the UCI test.
- 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
- Aerodynamics Designed U Shape Rim Profile. Better handling in crosswinds condition and faster riding.
- Novatec 291/482SB Hubs and Pillar 1423 Spokes.
Specification
|
Item NO.: |
WH-RT30W-NP |
|
Braking System: |
Rim Brake |
|
Applicable Bicycle: |
Road Bicycles |
|
Appearance: |
UD/3K/12K |
|
Finishing: |
Matte/Glossy |
|
Material: |
Full carbon fiber (Toray T700 and T800) |
|
Spoke Hole: |
20H(F),24H(R) |
|
Rim Width: |
23mm |
|
Rim Depth: |
38mm |
|
Rim ERD: |
570mm |
|
Type: |
Tubular |
|
Hub: |
Novatec 291/482SB |
|
Spokes: |
Pillar 1423 |
|
Front Wheel Weight: |
525±15g |
|
Rear Wheel Weight: |
720±15g |
|
Maximum Rider Weight: |
100kg |
|
Warranty: |
2 Years |
Rim Geometry

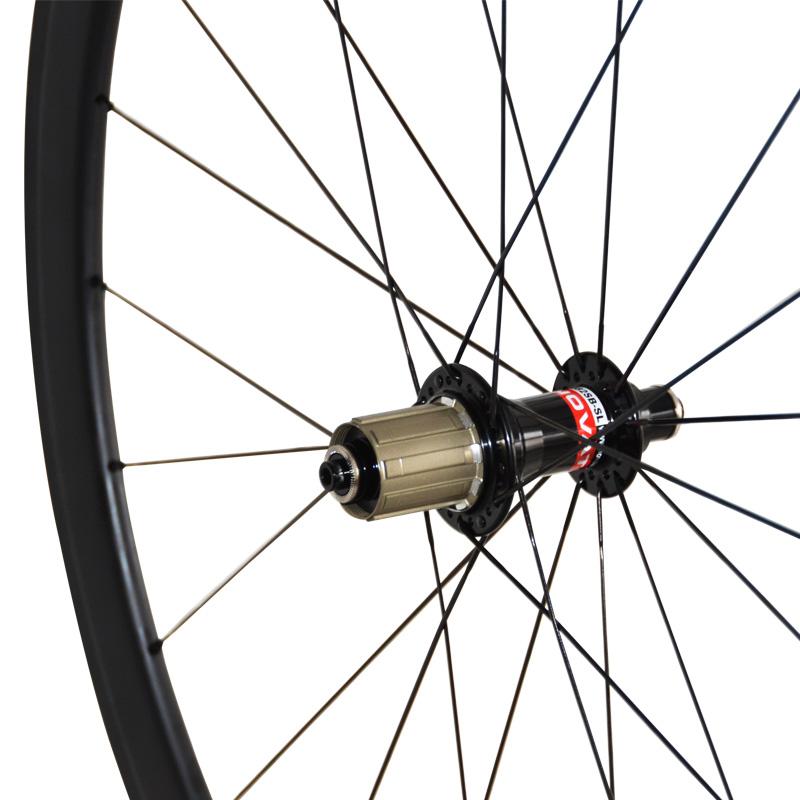

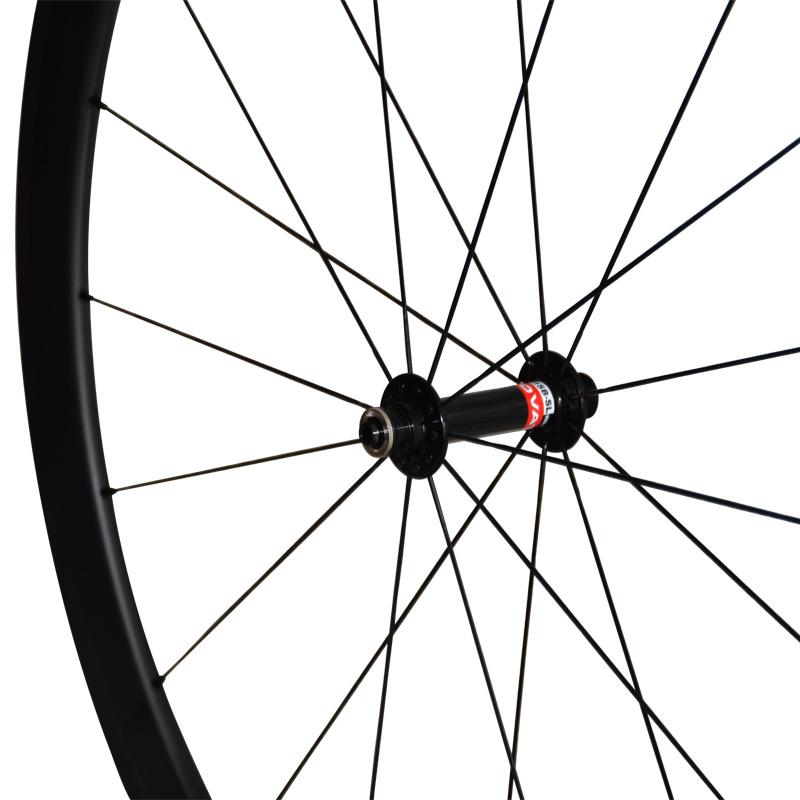

Hubs

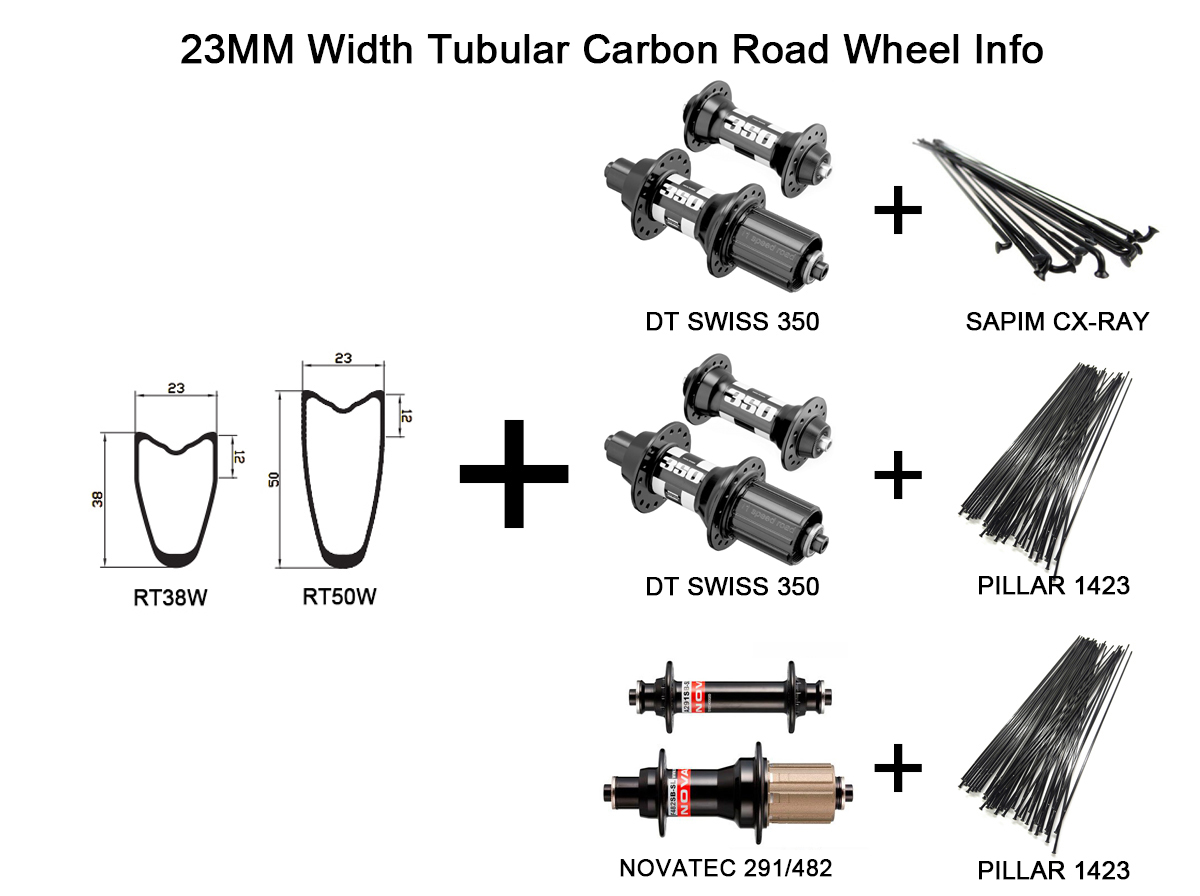

23mm Width Tubular Carbon Road Wheels Info
Wheelset Overview:
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece of long carbon fiber, with no wrinkles, to make the strength of the rim is the strongest. And we use a unique process to remove the air bladder from the valve hole so that the rim does not have to be patched as traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
