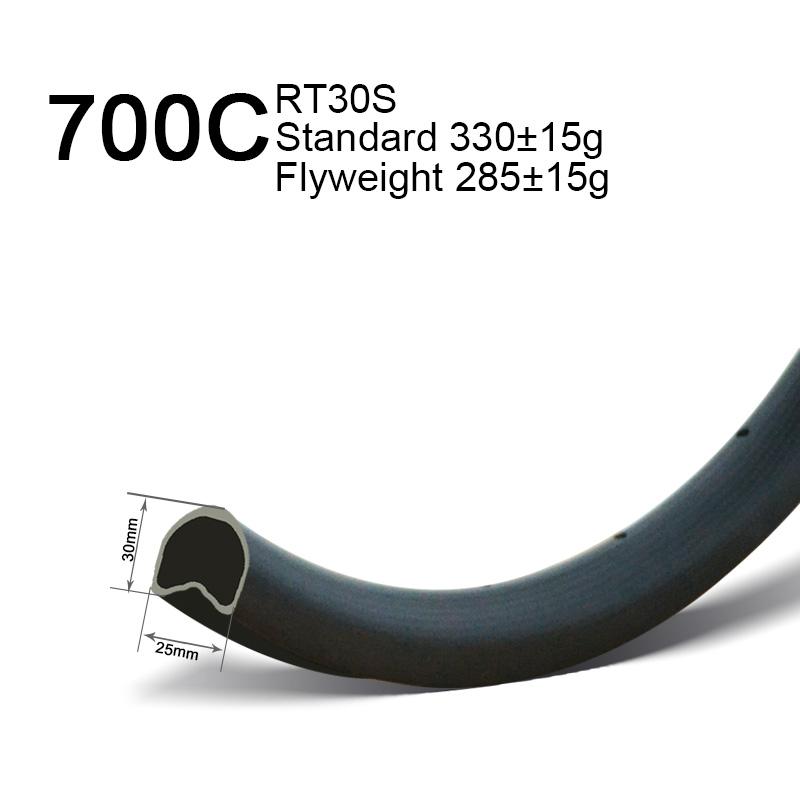

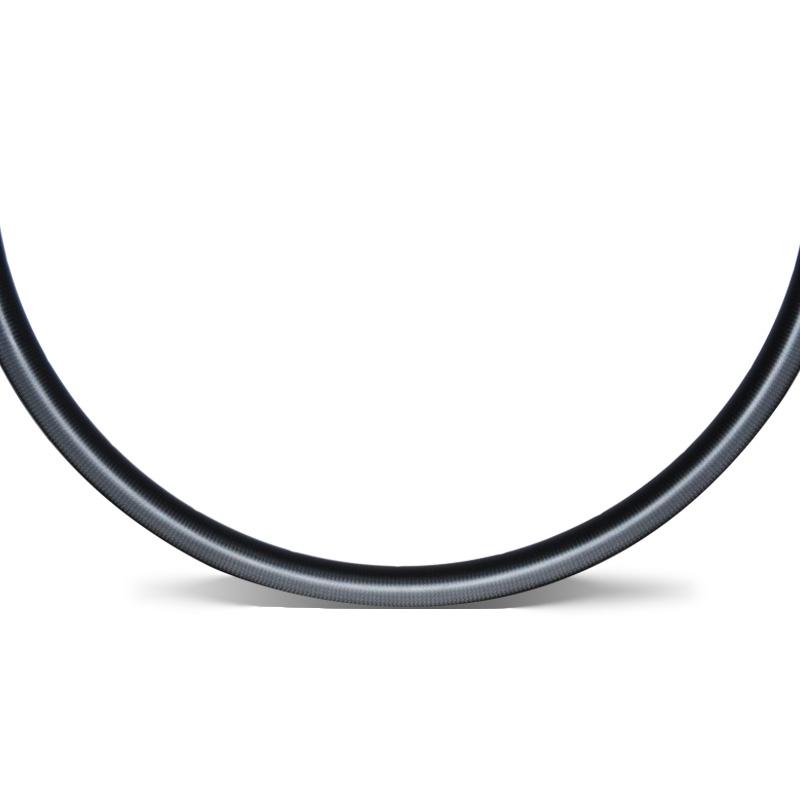

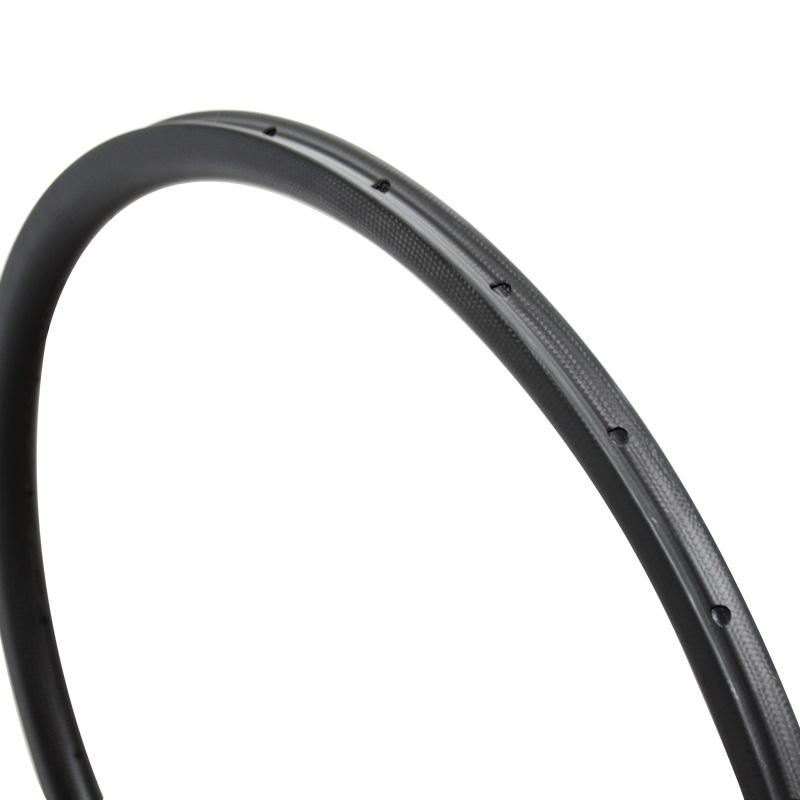

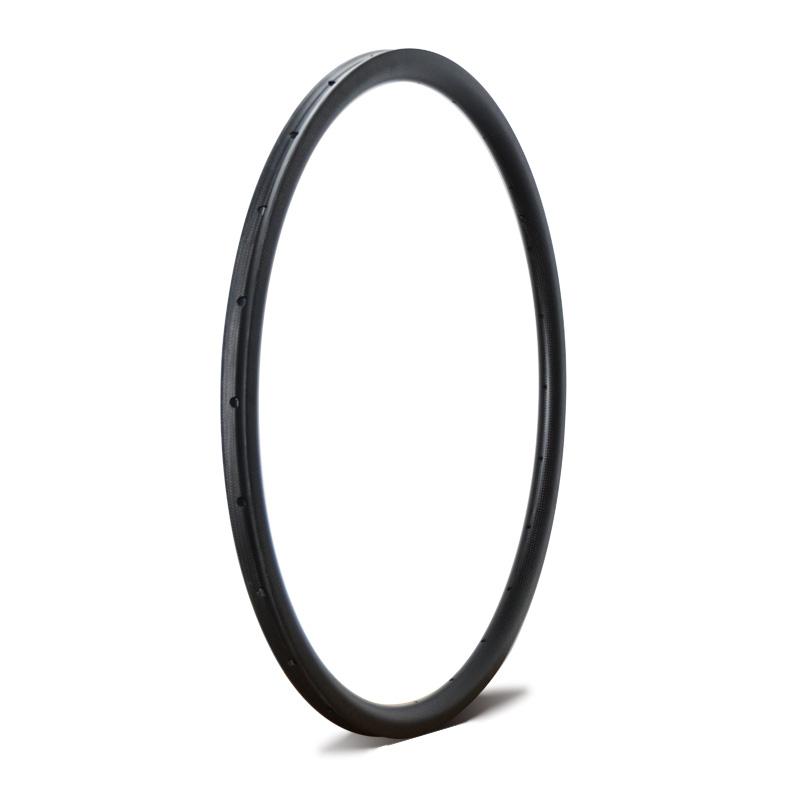

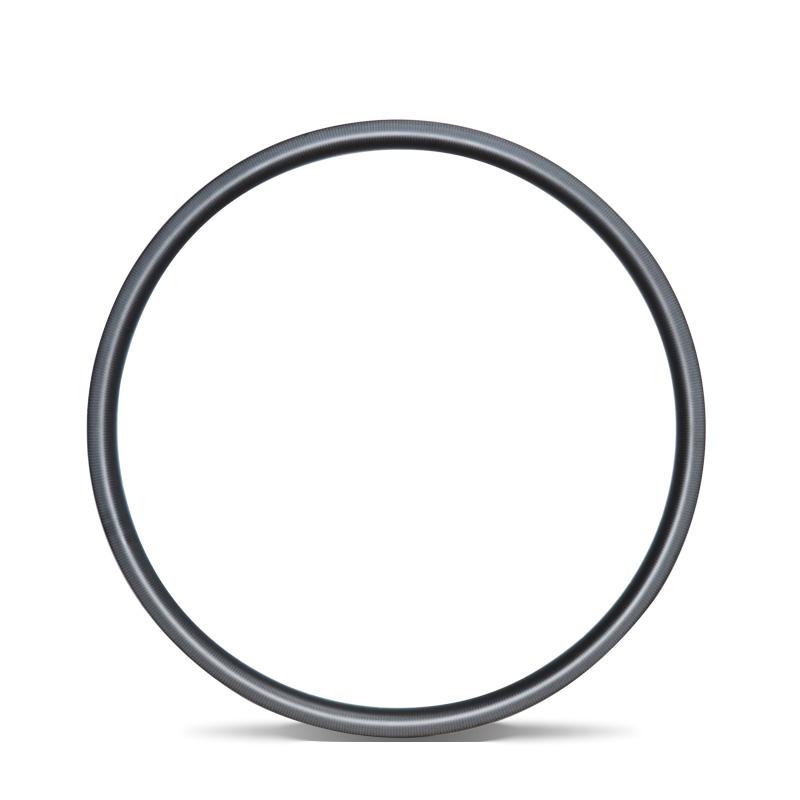

700C 25mm Width 30mm Depth Carbon Tubular Rims
Product Feature
- Super lightweight,700c 25mm wdie 30mm deep carbon tubular rims are constructed from Toray T700&T800 that structure minimize rotational weight.
- 700c road bike rims have flyweight version and weigh 280±15g.
- Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
- 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
- UCI test.We have professional testing equipment.All our carbon rims and wheels can pass uci test.
- Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
- U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
Specification
|
Item NO.: |
RT30S |
|
Braking System: |
Rim Brake/Disc Brake |
|
Applicable Bicycle: |
Road Bicycles |
|
Appearance: |
UD/3K/12K |
|
Finishing: |
Matte/Glossy |
|
Material: |
Full carbon fiber (Toray T700 and T800) |
|
Spoke Hole: |
16H-36H |
|
Outer width: |
25mm |
|
Depth: |
30mm |
|
ERD: |
583mm |
|
Type: |
Tubular |
|
Weight: |
Standard:330±15g Flyweight:280±15g |
|
Standard: |
En Standard |
|
Assembly Hole Dia: |
8.5mm |
|
Spoke Hole Dia: |
4.5mm |
|
Valve Hole Dia: |
6.5mm |
|
Roundess: |
<0.25mm |
|
Flatness: |
<0.15mm |
|
Max Spoke Tension: |
>350kgf |
|
Weight limit: |
<100kg |

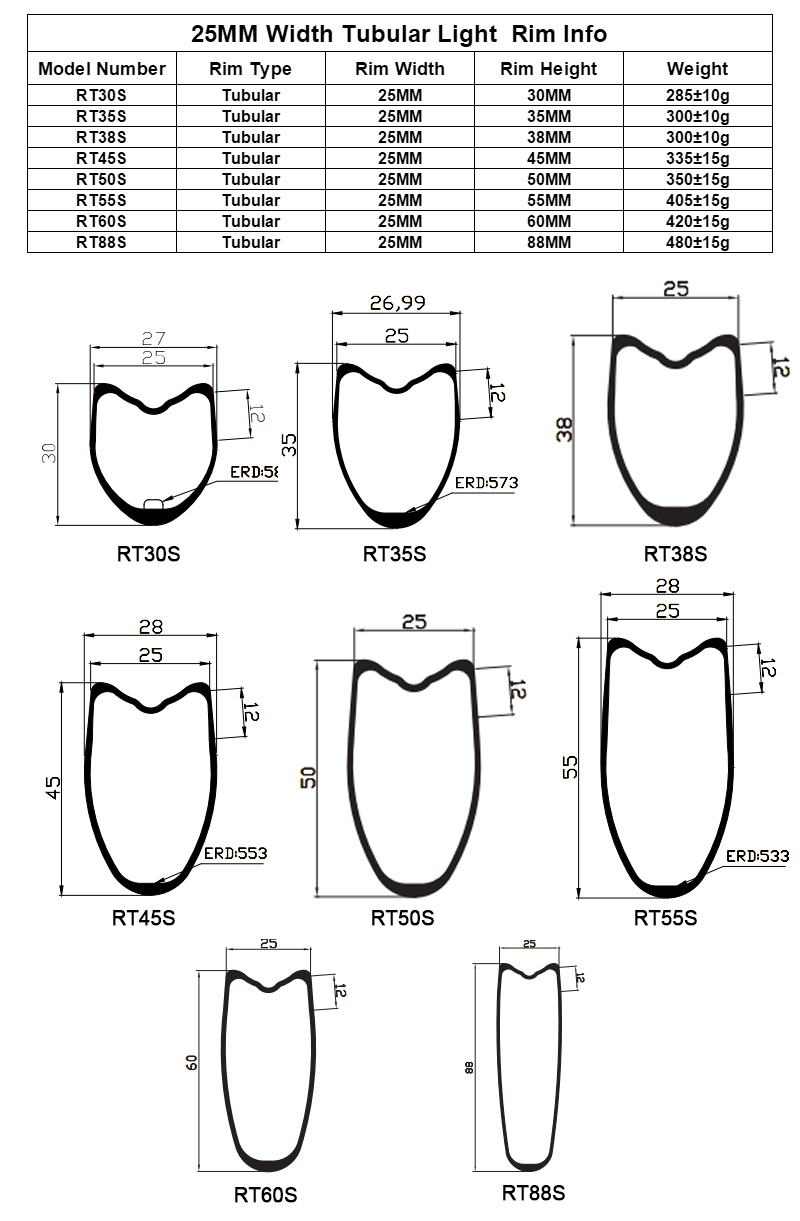

Geometry
Our 25mm Width Tubular Carbon Road Rims Info
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
Read More For Testing Of Carbon Rims By DCH Factory
