GoFast Chosen Hub Road Bicycle 28mm Width 30mm Depth Carbon Spoke Wheelset 700c
Product Feature
- All spoke hole angles must be customized according to the geometric angle of the hub.all drilled holes are inspected to ensure they are free of burrs.You can request a customized drilling pattern if you have a unique wheel build.
- High TG Resin.DCH’s proprietary High Glass Transition Temperature (Tg) resin helps produce a brake track that withstands the higher heat caused by heavy rim braking, enhancing the rim’s long-term durability and braking performance.
- We use lighter materials and make full use of the combination of T700 and T800 to improve the strength.
- Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing.

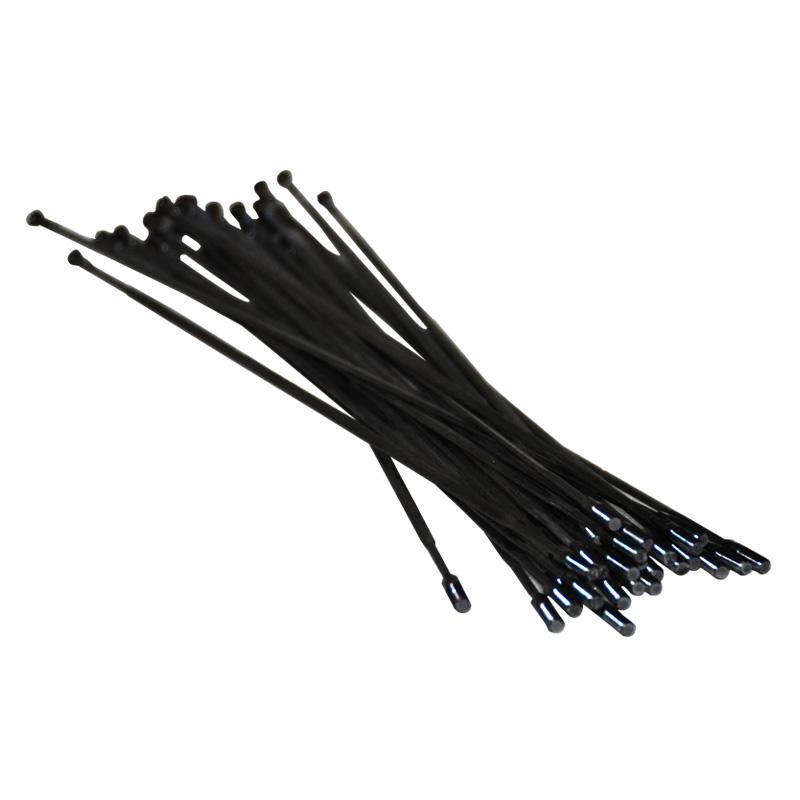

High tensile-strength DCH aero carbon spokes minimize lateral flex for more efficient acceleration and climbing and feature a purpose designed aero shape offering excellent aerodynamic characteristics as well as superior stability in shifting winds, all at the lightest weight possible.
-DCH Precision Reinforced Layup
DCH precision reinforced layup places high tensile strength carbon fiber only where needed, creating a strong, stiff structure at minimal weight.
-Low-Friction Hub
Precision machined internals eliminate excessive bearing load, reduce bearing friction and minimize rolling resistance.

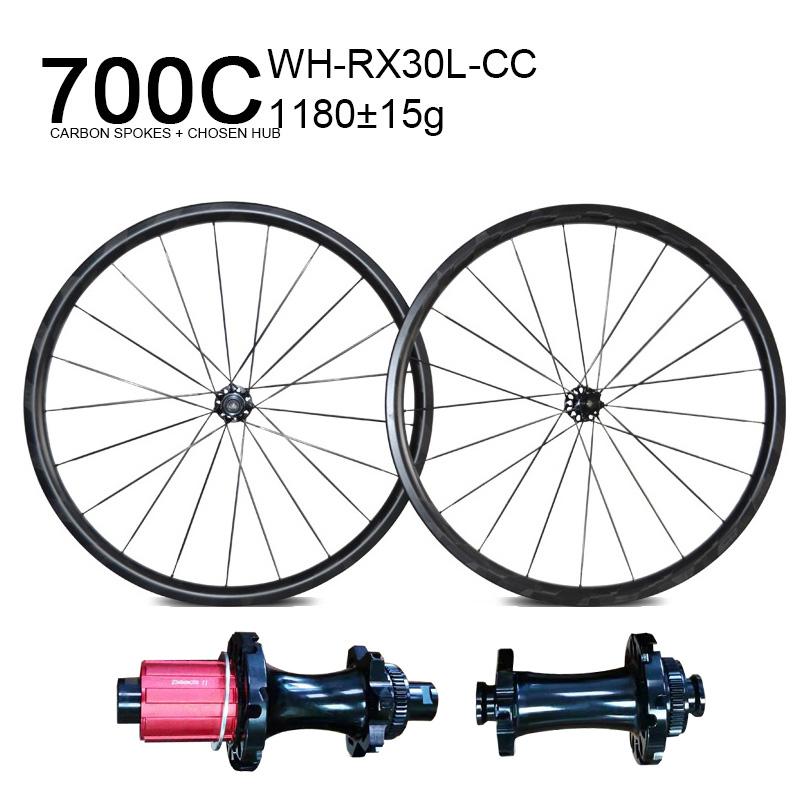

Specification
|
Item NO.: |
WH-RX30L-CC |
|
Braking System: |
Disc Brake |
|
Applicable Bicycle: |
Road Bicycles |
|
Appearance: |
ATS appearance |
|
Material: |
Full carbon fiber (Toray T700&T800) |
|
Spoke Hole: |
21H |
|
Rim width: |
28mm |
|
Rim Depth: |
30mm |
|
Rim ERD: |
583mm |
|
Type: |
Tubeless |
|
Hub: |
Chosen Hub |
|
Spokes: |
Carbon Spokes(same as carbon spokes of Liv wheels) |
|
Front Wheel Weight: |
535±10g |
|
Rear Wheel Weight: |
645±10g |
|
Warranty: |
18 months |
|
Max Spoke Tension: |
>450kgf |

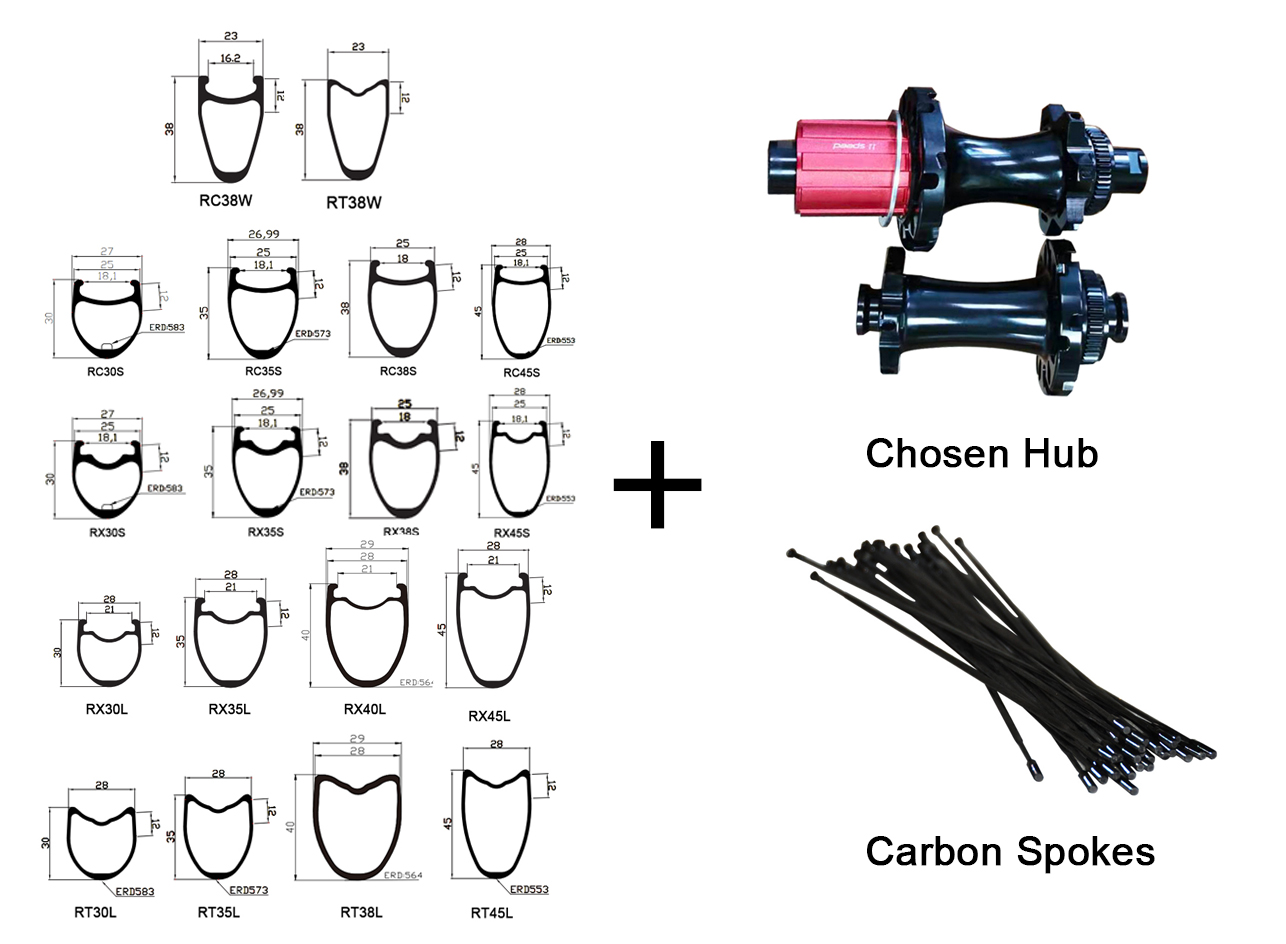

Rim Geometry

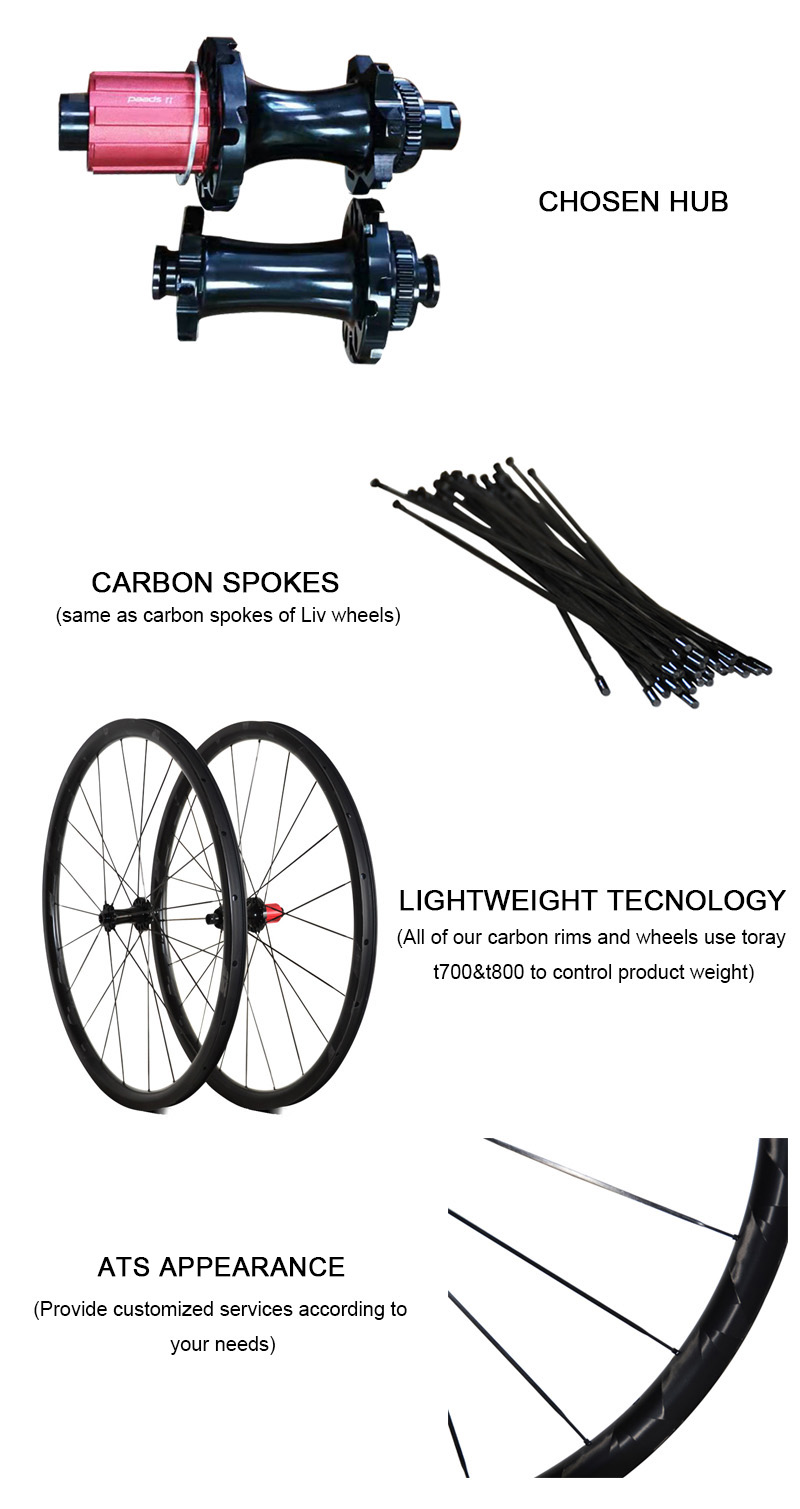

Highlights
Behind the outstanding performance of the new Wheel Systems with carbon spokes are several innovative technologies that deliver lightweight advantage, max power transfer and confident handling.

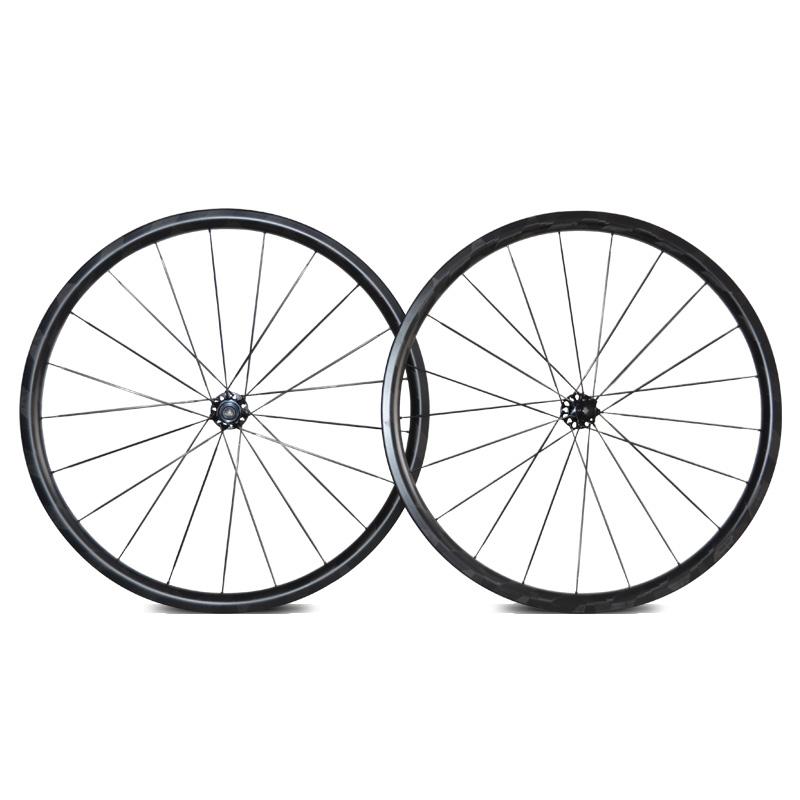

Wheelset Overview:
Carbon Fiber Spokes Chosen Hub Road Bike Carbon Wheels Specification:
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
