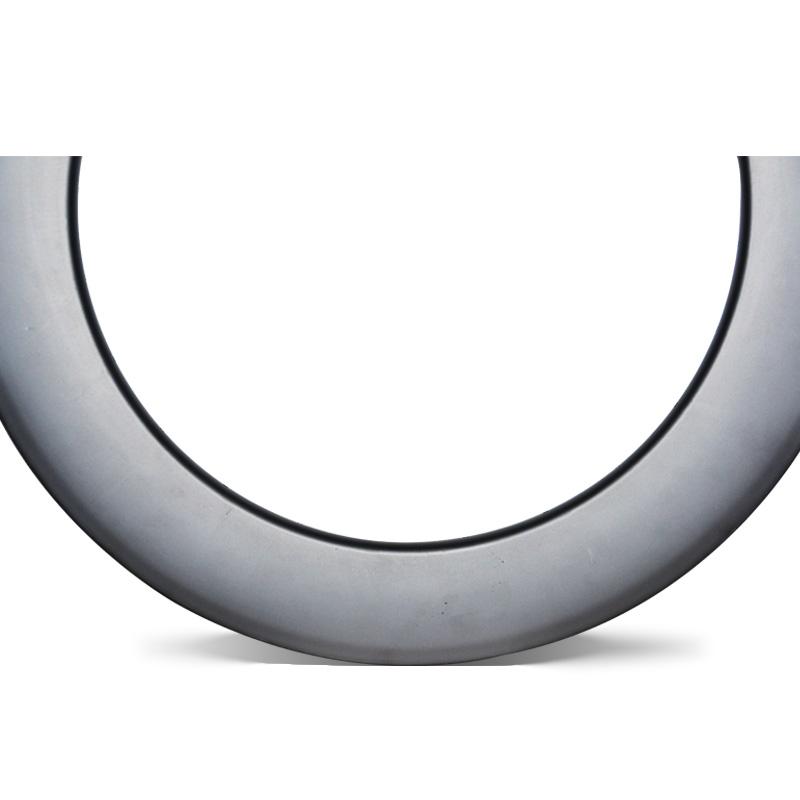

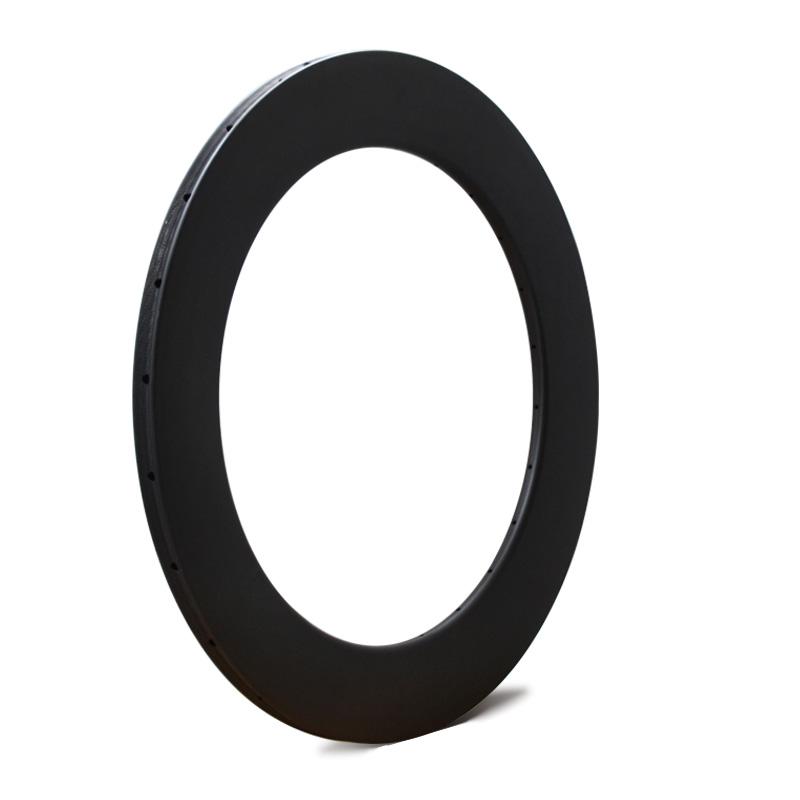

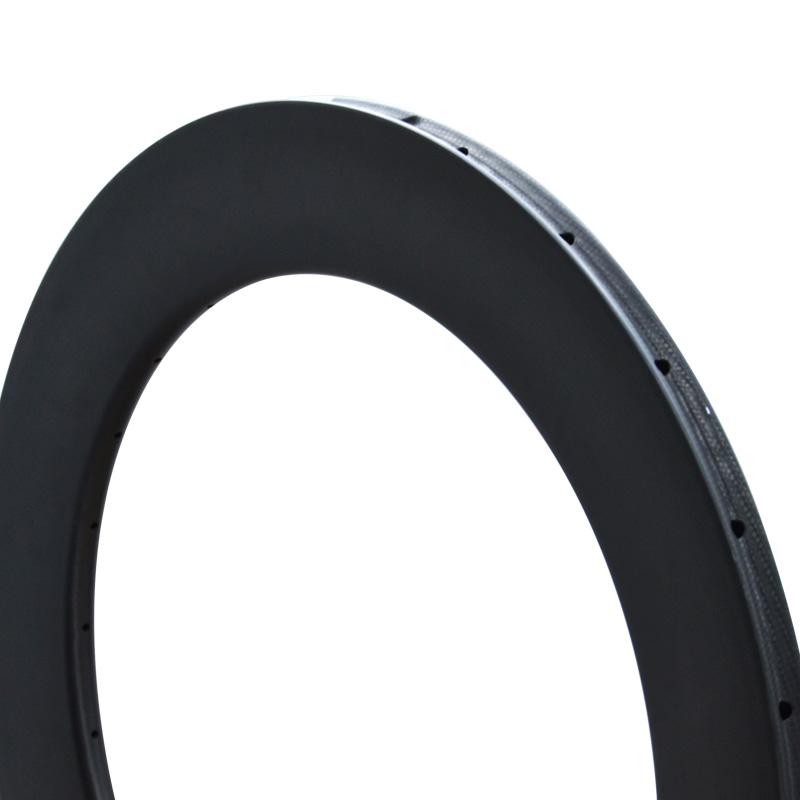

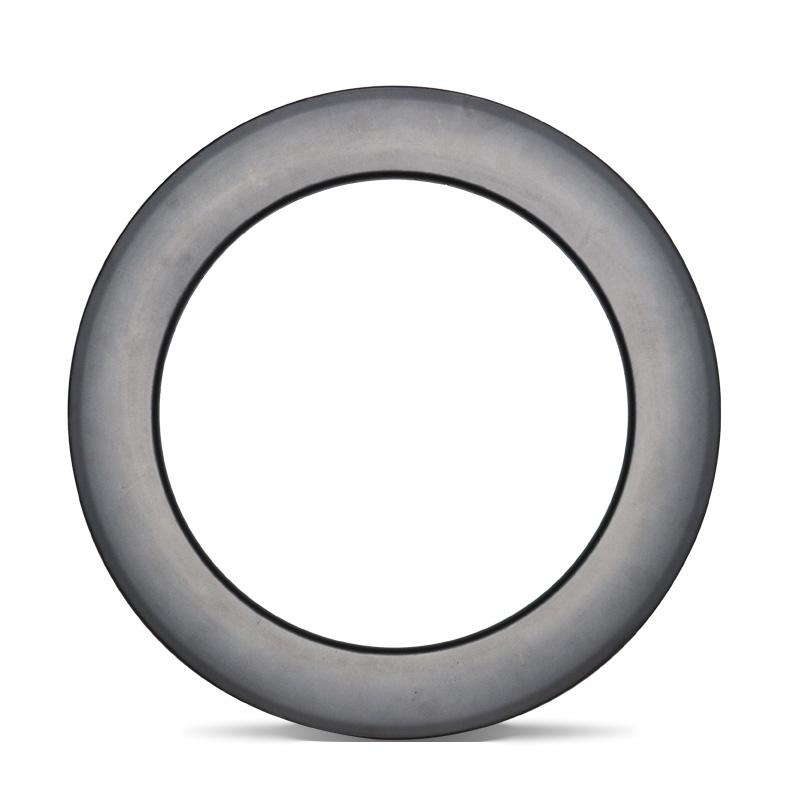

700C 25mm Width 88mm Depth Tubular Carbon Rims
Product Feature
- Super lightweight,25mm wide 88mm deep 700c road bike rims are constructed from Toray T700&T800 that structure minimize rotational weight.
- 700c tubular rims have flyweight version and weight 480±15g.
- Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.

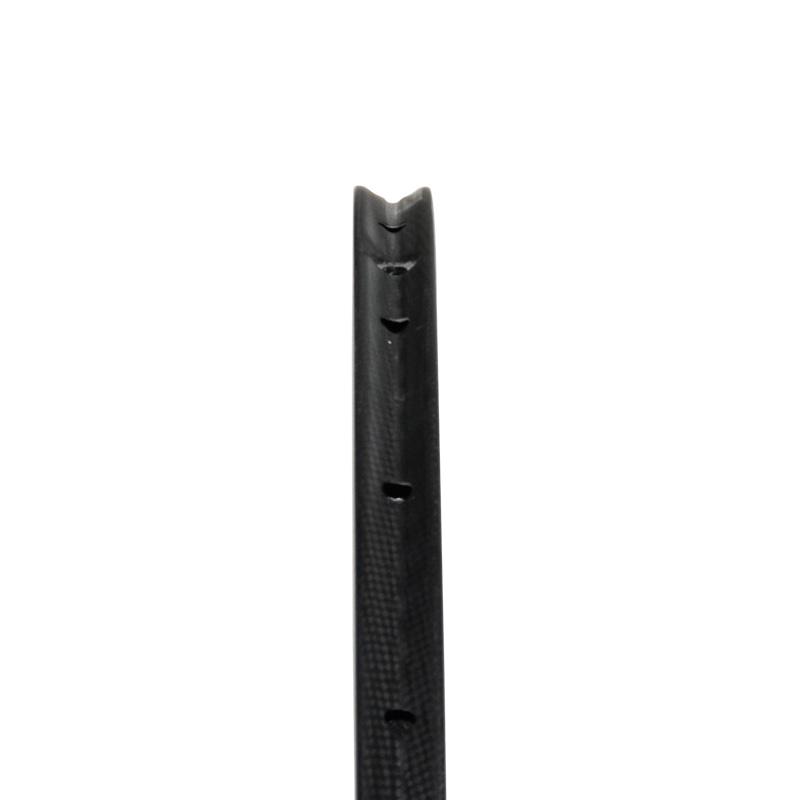

- 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
- UCI test.We have professional testing equipment.All our carbon rims and wheels can pass uci test.
- U areodynamic shape makes road tubular rims lightweight but still stiff, keeping them stable in cross winds condition.
- Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
Specification
|
Item NO.: |
RT88S |
|
Braking System: |
Rim Brake/Disc Brake |
|
Applicable Bicycle: |
Road Bicycles |
|
Appearance: |
UD/3K/12K |
|
Finishing: |
Matte/Glossy |
|
Material: |
Full carbon fiber (Toray T700 and T800) |
|
Spoke Hole: |
16H-36H |
|
Outer width: |
25mm |
|
Depth: |
88mm |
|
ERD: |
469mm |
|
Type: |
Tubular |
|
Weight: |
Standard:520±20g Flyweight:480±15g |
|
Standard: |
En Standard |
|
Assembly Hole Dia: |
8.5mm |
|
Spoke Hole Dia: |
4.5mm |
|
Valve Hole Dia: |
6.5mm |
|
Roundess: |
<0.25mm |
|
Flatness: |
<0.15mm |
|
Max Spoke Tension: |
>350kgf |
|
Weight limit: |
<100kg |

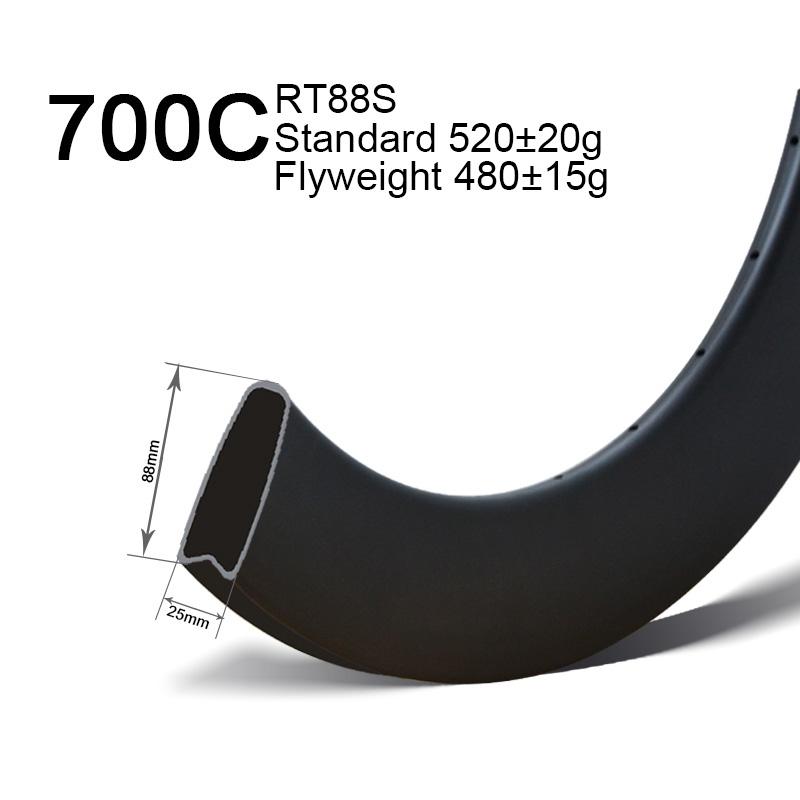

Geometry

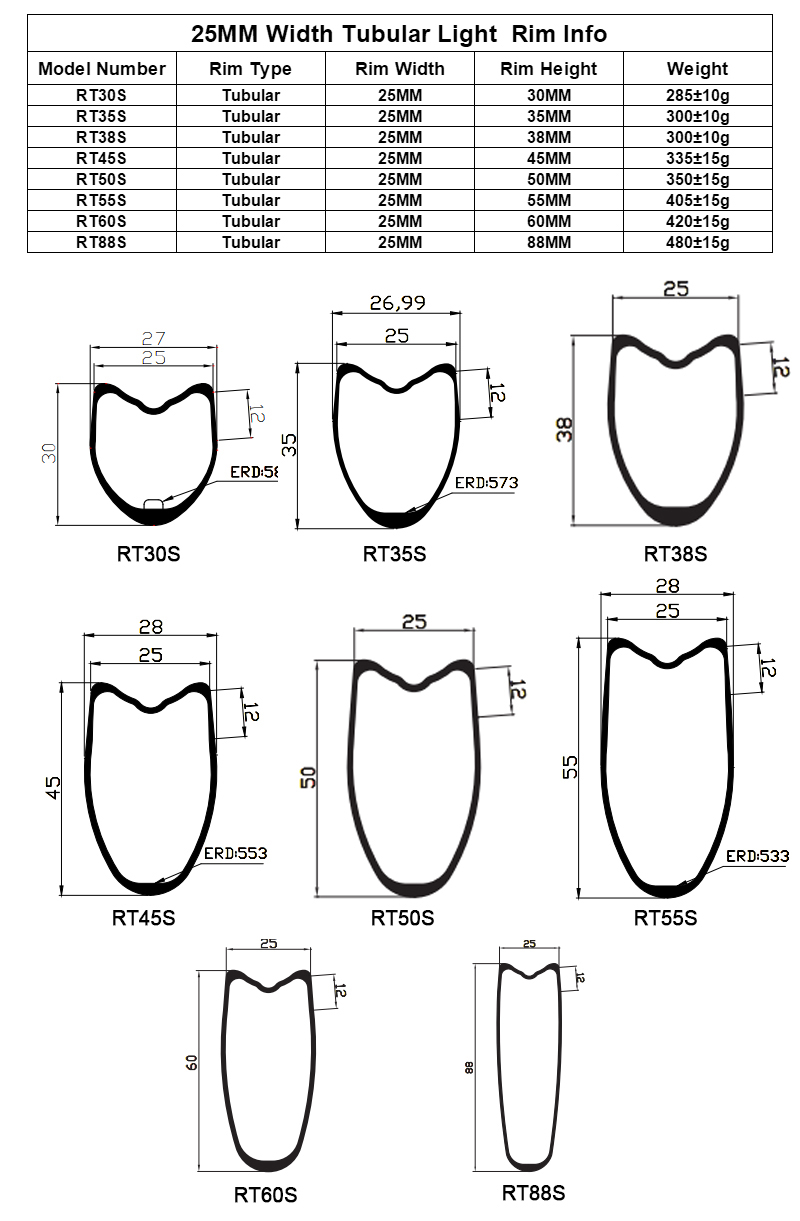

25mm Width Tubular Carbon Road Rims Info
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
Read More For Testing Of Carbon Rims By DCH Factory
