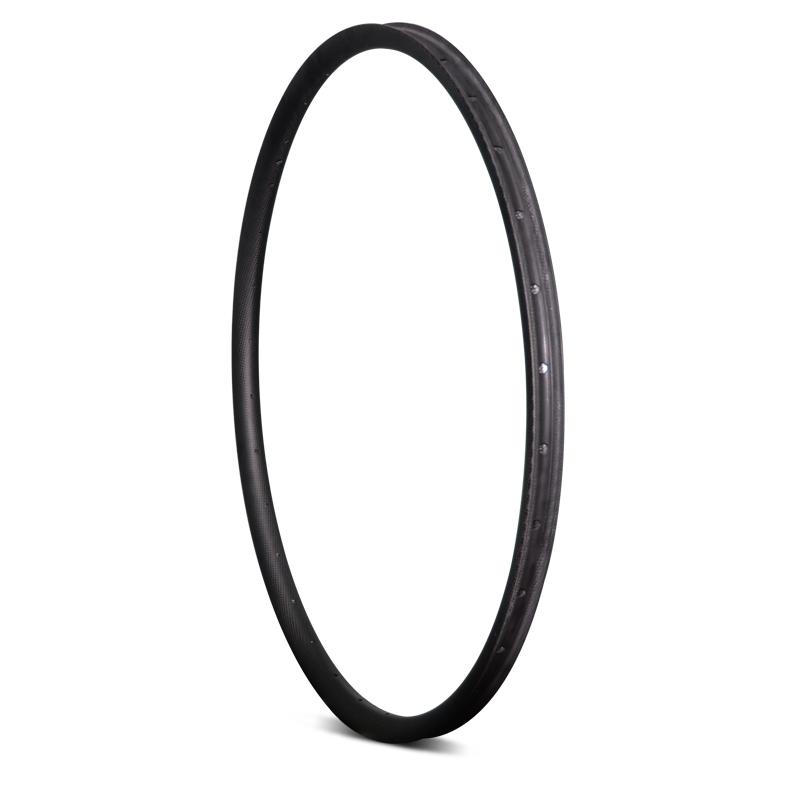

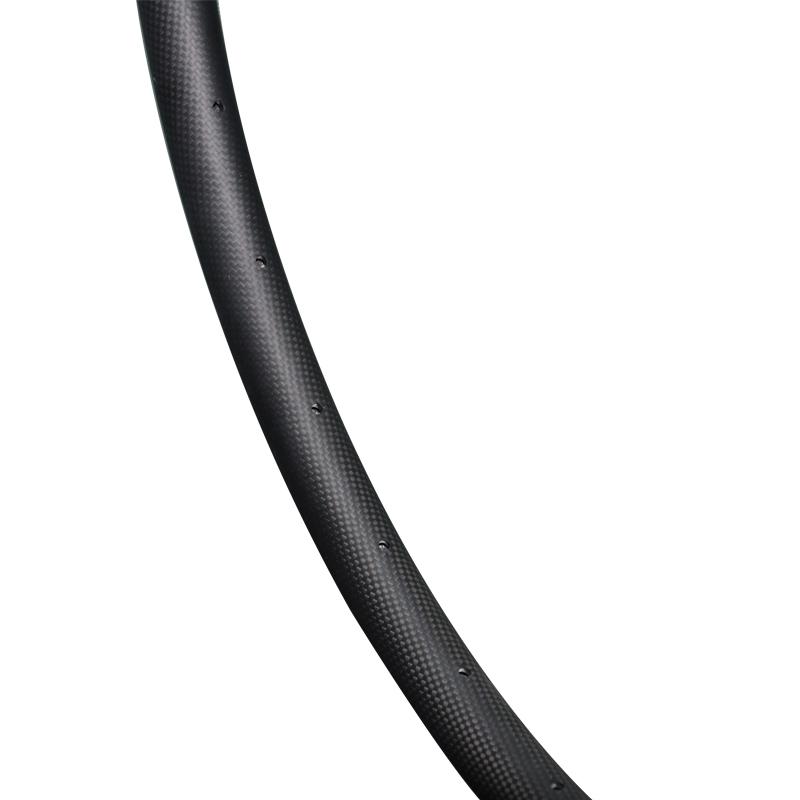

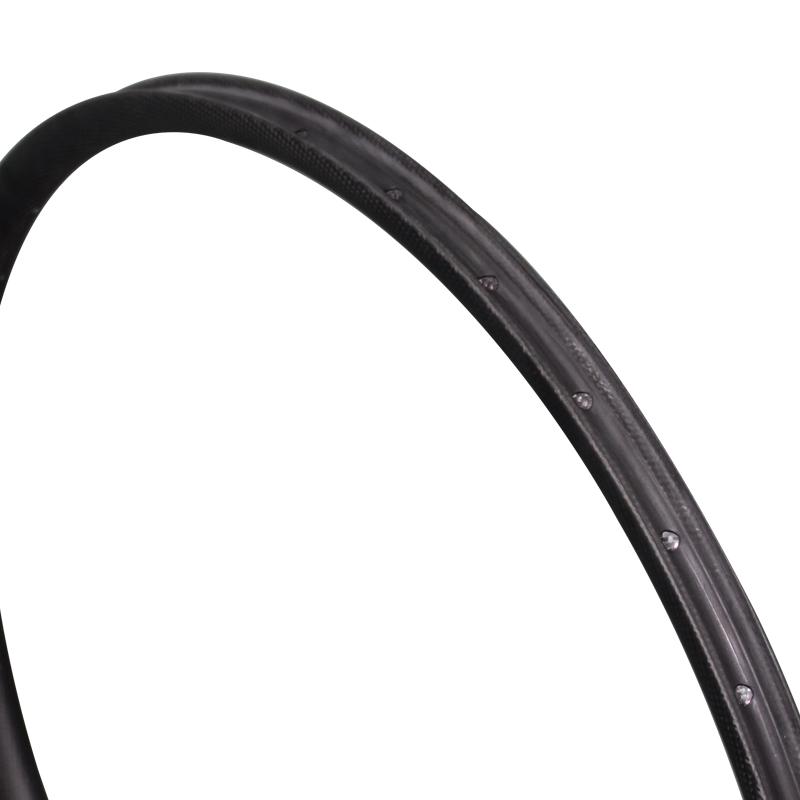

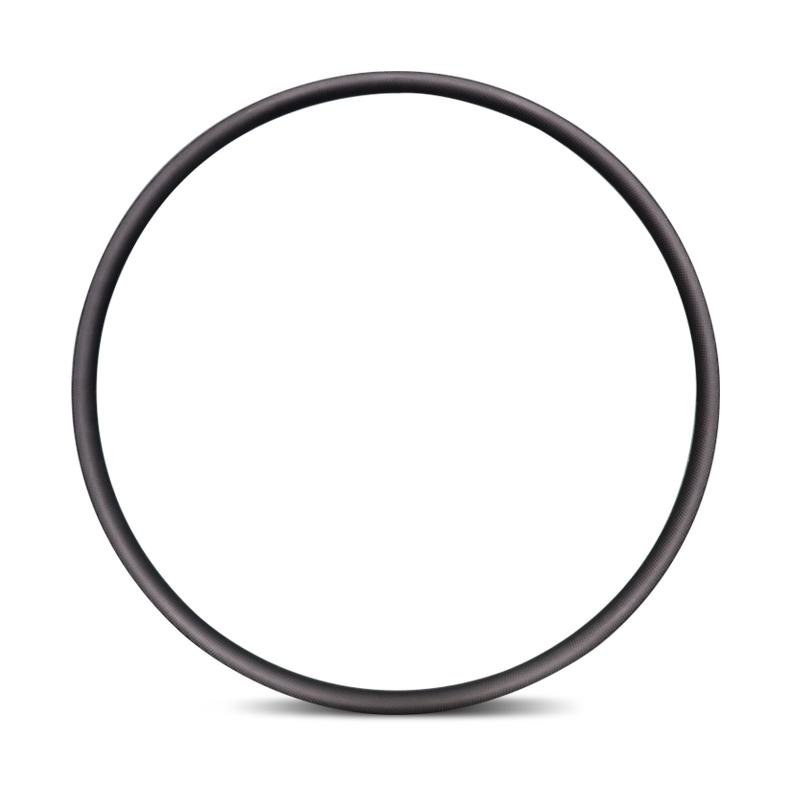

GoFast 29er 28mm Width 22mm Depth Carbon Mtb Rims For XC
Product Feature
- Compared to the technology of 3 piece, our one piece tech is more technically difficult and takes longer to produce, but the rigidity of the rim is at least 7% higher
- All spoke hole angles must be customized according to the geometric angle of the hub.all drilled holes are inspected to ensure they are free of burrs.You can request a customized drilling pattern if you have a unique wheel build.
- UCI test.We have professional testing equipment.The testing standards of our carbon rims and wheels exceed 30% of the UCI testing standards.
- We use lighter materials and make full use of the combination of T700 and T800 to improve the strength.
Specification
|
Item NO.: |
M928X-22 |
|
Size: |
29er |
|
Terrain: |
Cross Country |
|
Appearance: |
UD/3K/12K |
|
Finishing: |
Matte/Glossy |
|
Material: |
Full carbon fiber (Toray T700+T800) |
|
Spoke Hole: |
24/28/32H |
|
Outer width: |
28mm |
|
Depth: |
22mm |
|
ERD: |
595mm |
|
Type: |
tubeless |
|
Weight: |
300±10g |
|
Standard: |
En Standard |
|
Tire Pressure: |
35-60psi |
M928X-22 Overview

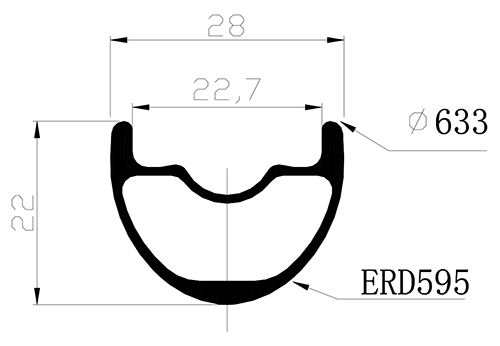

Geometry
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
