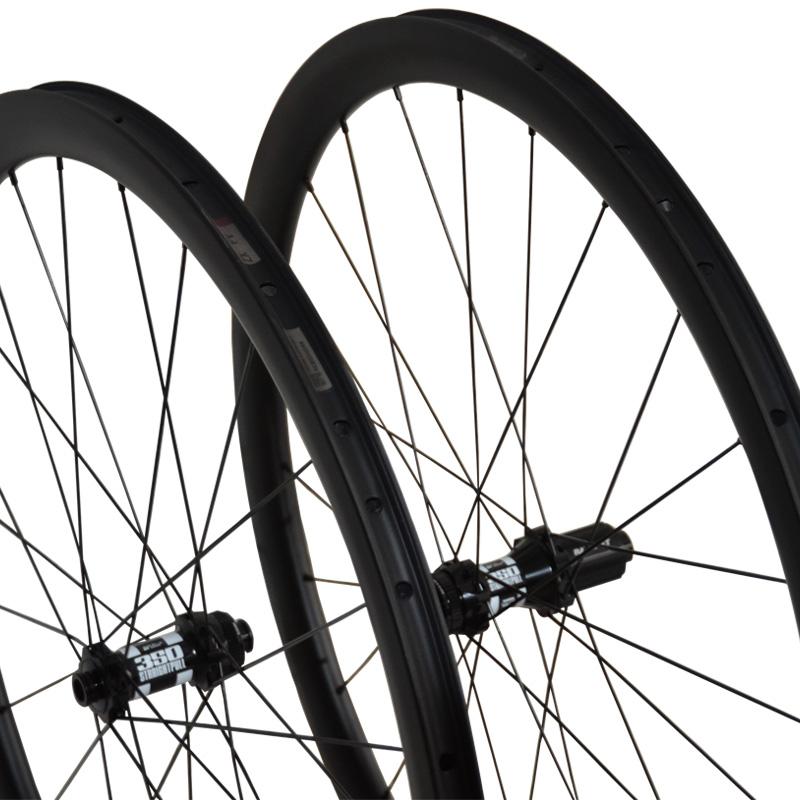

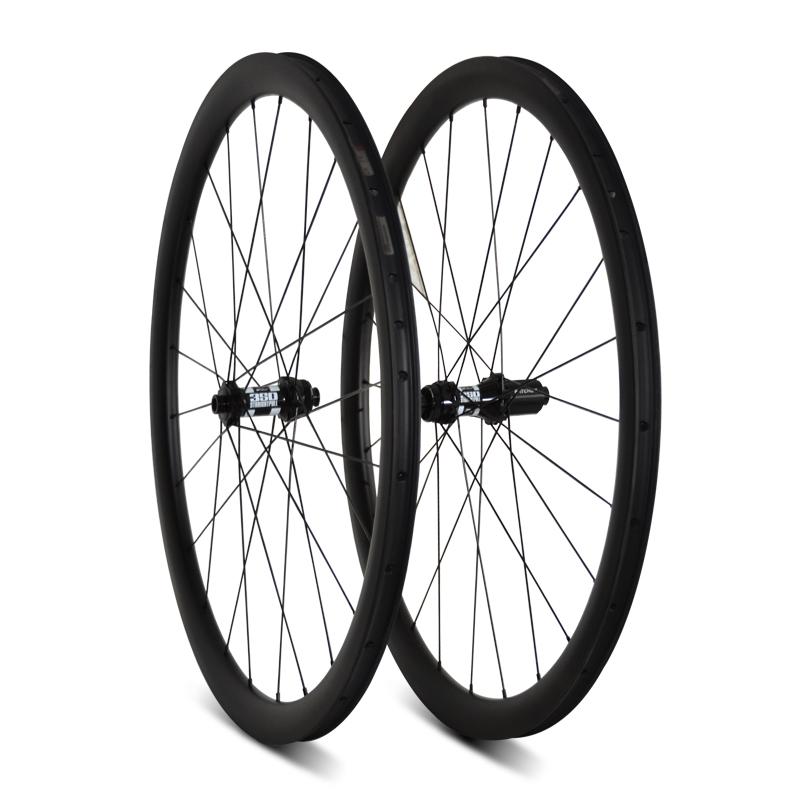

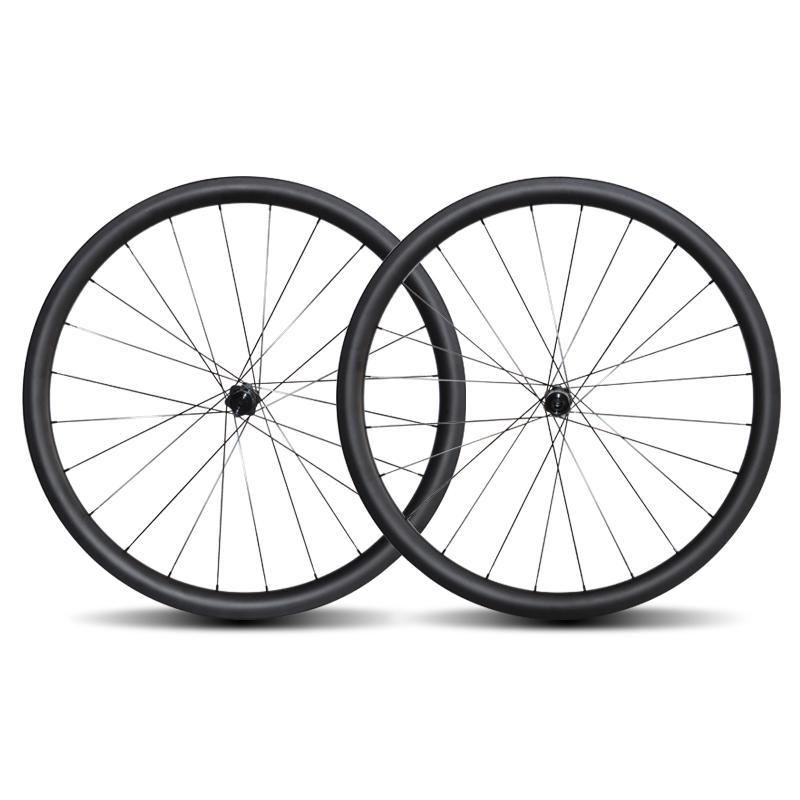

GoFast 700C DT Swiss 350 Hub Disc Brake 25mm Width 38mm Depth Carbon Road Bicycle Wheelset
Product Feature
- A strong and seriously wide yet lightweight carbon rim, with an aero-rounded profile for excellent handling and speed.
- Toray T700/T800 unidirectional and 3K weave carbon-fibre with 3K weave bed and spoke areas.
- High TG resin provides extremely reliable braking and durability for longer descents. We lab test all our rims to very high braking temp (200 C) to push their limits.
- 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
- UCI test.We have professional testing equipment.All our carbon rims and wheels can pass uci test.
Specification
|
Item NO.: |
WH-RX38S-DS |
|
Braking System: |
Disc Brake |
|
Applicable Bicycle: |
Road Bicycles |
|
Appearance: |
UD/3K/12K |
|
Finishing: |
Matte/Glossy |
|
Material: |
Full carbon fiber (Toray T700 and T800) |
|
Spoke Hole: |
20H 24H |
|
Rim Width: |
25mm |
|
Rim Depth: |
38mm |
|
Rim ERD: |
567mm |
|
Type: |
Tubeless |
| Wheelset Weight: | 1545±15g |
|

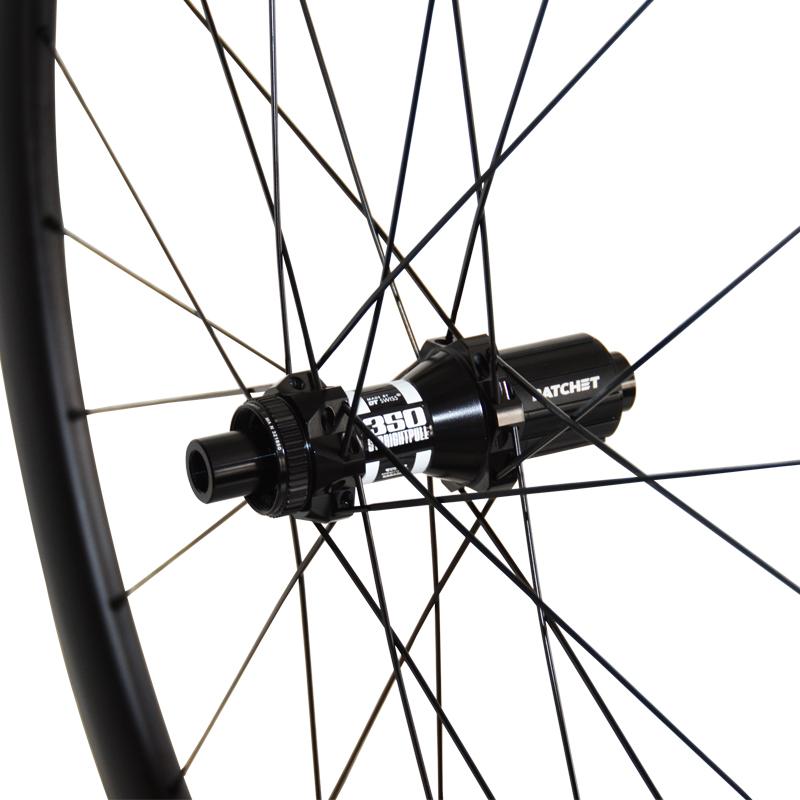

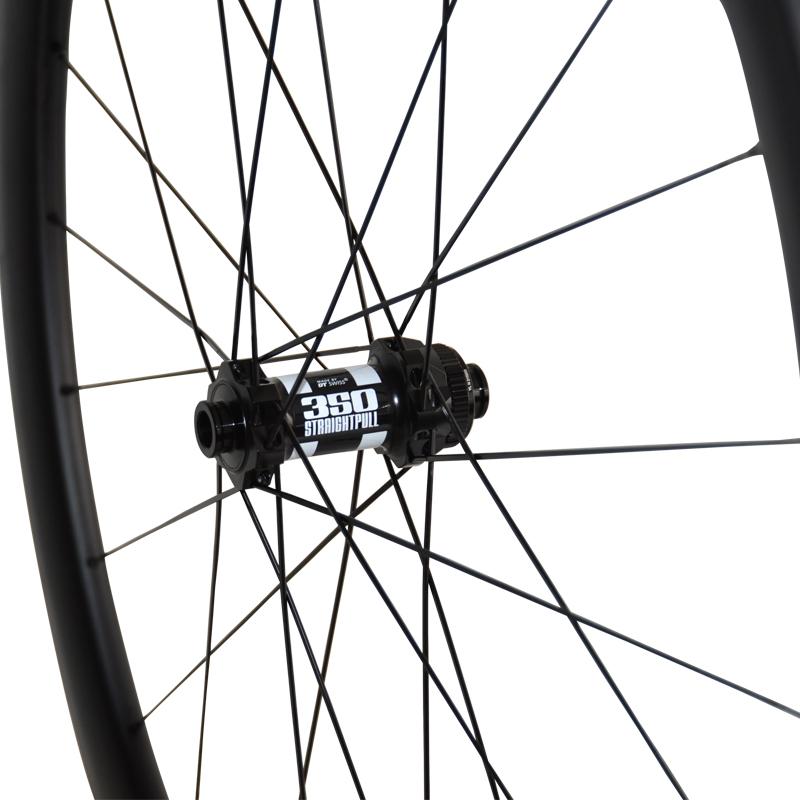

Hub: |
DT Swiss 350 |
|
Spokes: |
Sapim cx-ray |
|
Maximum Rider Weight: |
110kg |
|
Warranty: |
2 Years |

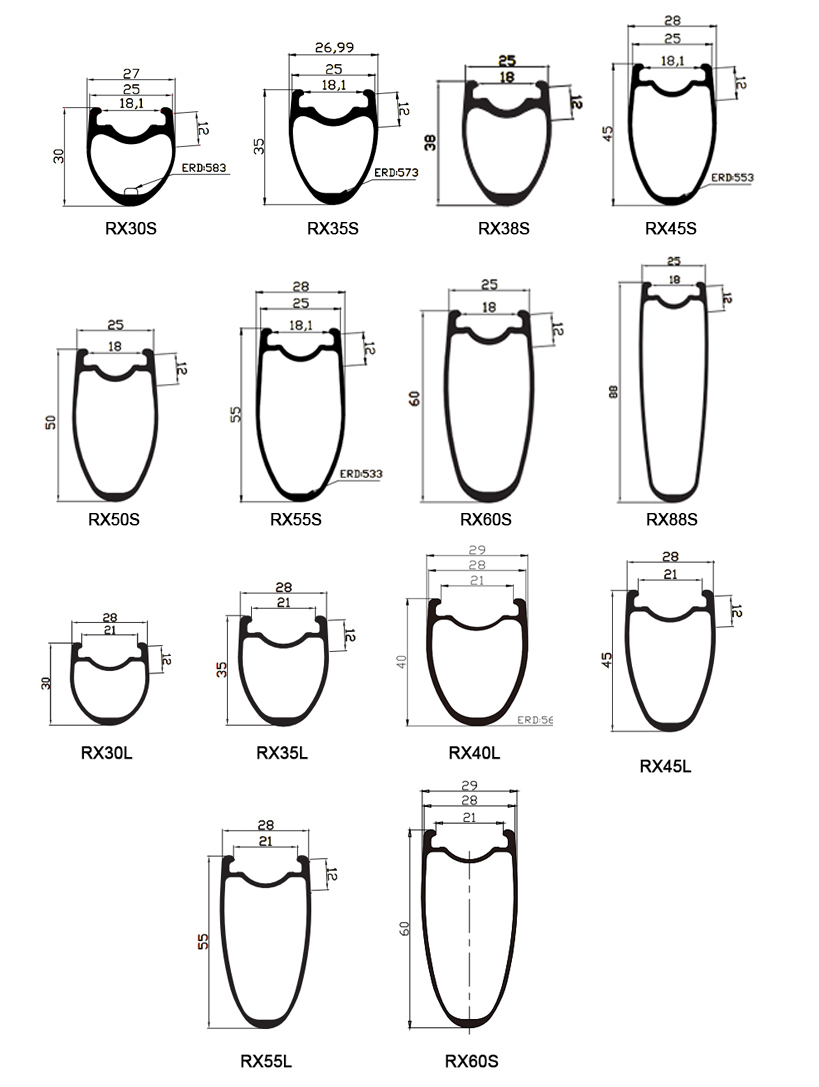

Rim Geometry

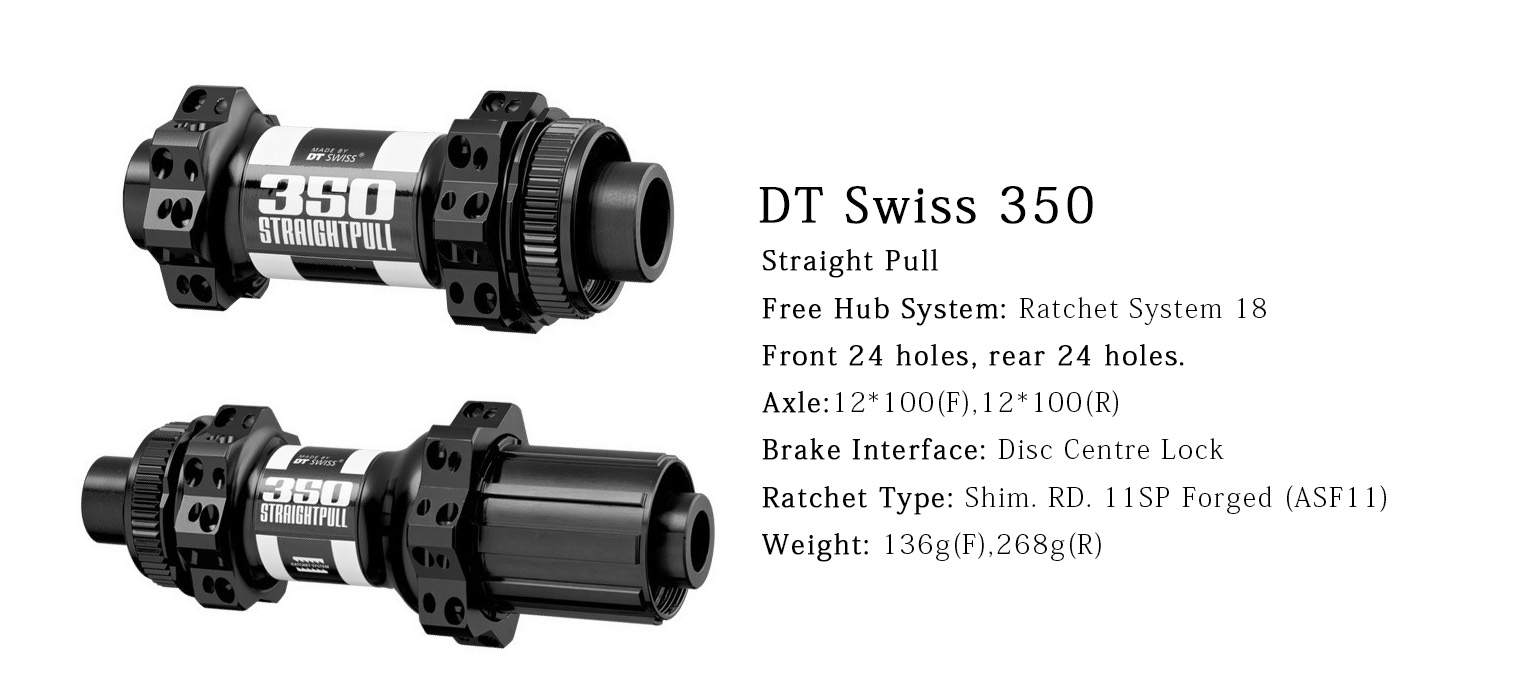

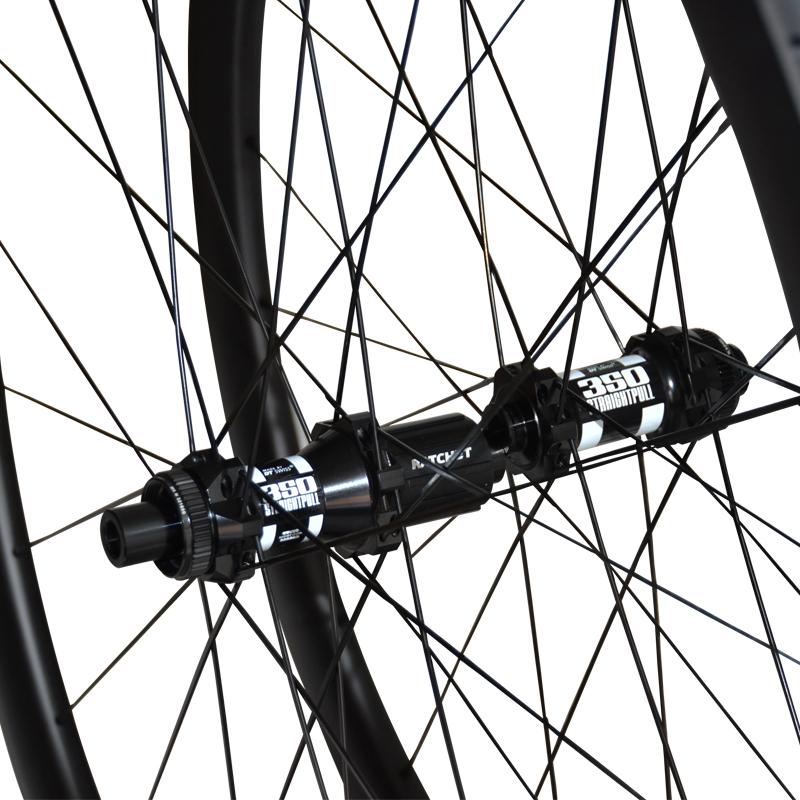

Hubs
Tubeless Lightweight Carbon Road Wheelset Info
|
Model |
Rim |
Rim Type |
Rim Width |
Rim Depth |
Hub |
Spokes |
Weight(±3%) |
|
WH-RX30S-DS |
RX30S |
Tubeless |
25mm |
30mm |
DT Swiss 350 |
Sapim cx-ray |
1450g |
|
WH-RX35S-DS |
RX35S | 35mm |
Sapim cx-ray |
1470g |
|||
|
WH-RX38S-DS |
RX38S | 38mm |
Sapim cx-ray |
1500g |
|||
|
WH-RX45S-DS |
RX45S | 45mm |
Sapim cx-ray |
1550g |
|||
|

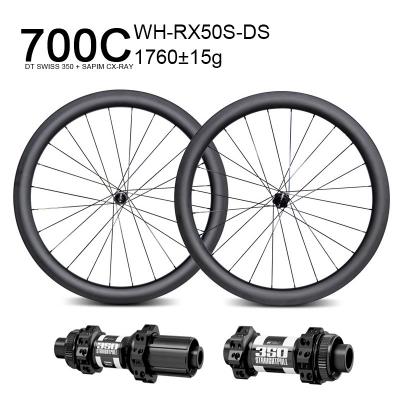

WH-RX50S-DS |
RX50S | 50mm |
Sapim cx-ray |
1580g |
|||
|
WH-RX55S-DS |
RX55S | 55mm |
Sapim cx-ray |
1640g |
|||
|

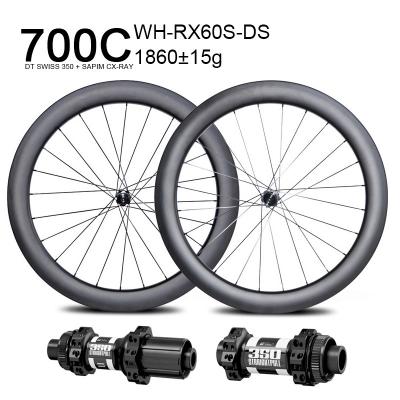

WH-RX60S-DS |
RX60S | 60mm |
Sapim cx-ray |
1680g |
|||
|
WH-RX88S-DS |
RX88S | 88mm |
Sapim cx-ray |
2020g |
|||
|
WH-RX30L-DS |
RX30L |
28mm |
30mm |
Sapim cx-ray |
1460g |
||
|
WH-RX35L-DS |
RX35L | 35mm |
Sapim cx-ray |
1480g |
|||
|
WH-RX40L-DS |
RX40L | 40mm |
Sapim cx-ray |
1500g |
|||
|
WH-RX45L-DS |
RX45L | 45mm |
Sapim cx-ray |
1520g |
|||
|
WH-RX55L-DS |
RX55L | 55mm |
Sapim cx-ray |
1640g |
|||
|
WH-RX60L-DS |
RX60L | 60mm |
Sapim cx-ray |
1700g |

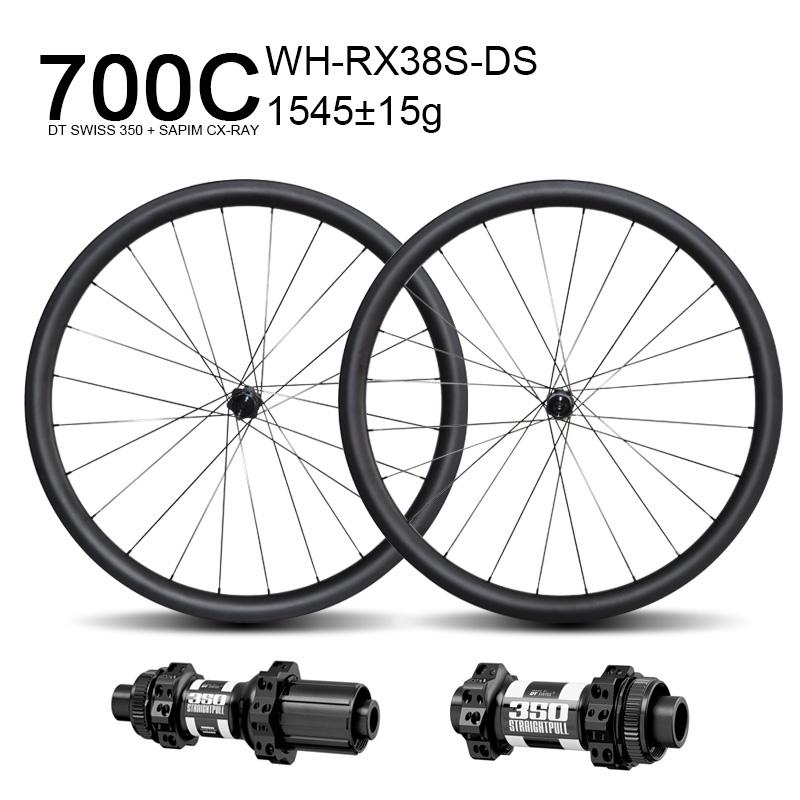

WH-RX38S-DS Overview
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made of one piece of long carbon fiber, with no wrinkles, to make the strength of the rim is the strongest. And we use a unique process to remove the air bladder from the valve hole so that the rim does not have to be patched as traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
