GoFast Carbon Fiber Spokes Road Bike Wheelset 700c

Dec 15 , 2021

With the application and development of carbon fiber in bicycles, some famous bicycle brands in the world began to use carbon fiber spokes in wheels. In order to meet the needs of current customers, DCH has also developed a series of carbon fiber spoke road bicycle wheels represented by WH-RX30L-CC. In this wheelset, we used the more popular ATS appearance.

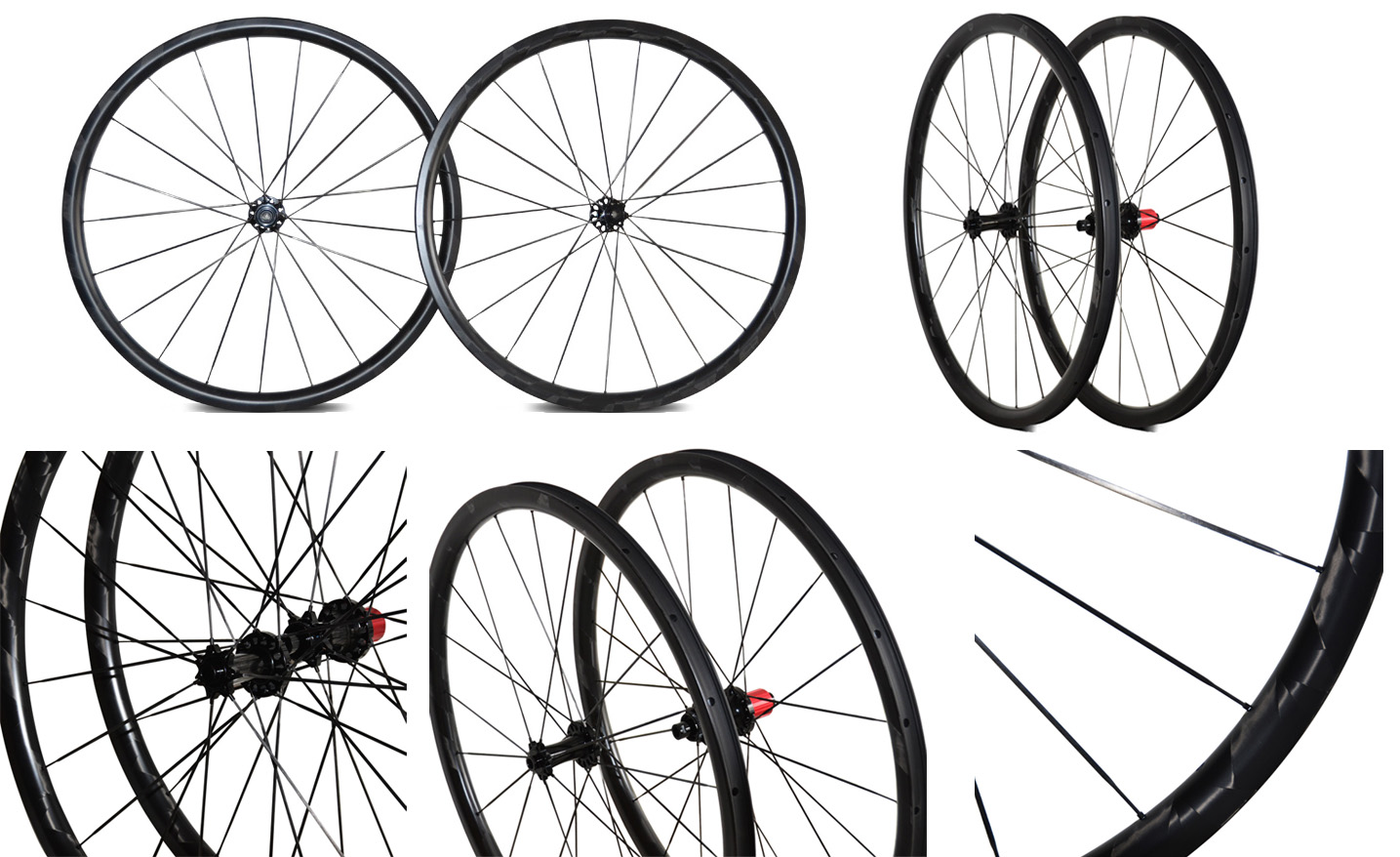

carbon fiber spokes road wheels 700c

Product Feature

All spoke hole angles must be customized according to the geometric angle of the hub. all drilled holes are inspected to ensure they are free of burrs. You can request a customized drilling pattern if you have a unique wheel build.
High TG Resin.DCH’s proprietary High Glass Transition Temperature (Tg) resin helps produce a brake track that withstands the higher heat caused by heavy rim braking, enhancing the rim’s long-term durability and braking performance.
We use lighter materials and make full use of the combination of T700 and T800 to improve the strength.
Tubeless-ready design, makes road clincher rims better tubeless setup and better sealing.
Carbon fiber spokes have higher rigidity and higher tensile strength, the lateral response is 7% higher than that of equivalent steel spokes, and the high frequency vibration absorption capacity of carbon fiber spokes is stronger than that of steel spokes. It can provide better aerodynamics and excellent stability, giving you an advantage in full speed sprints and high-power climbing.

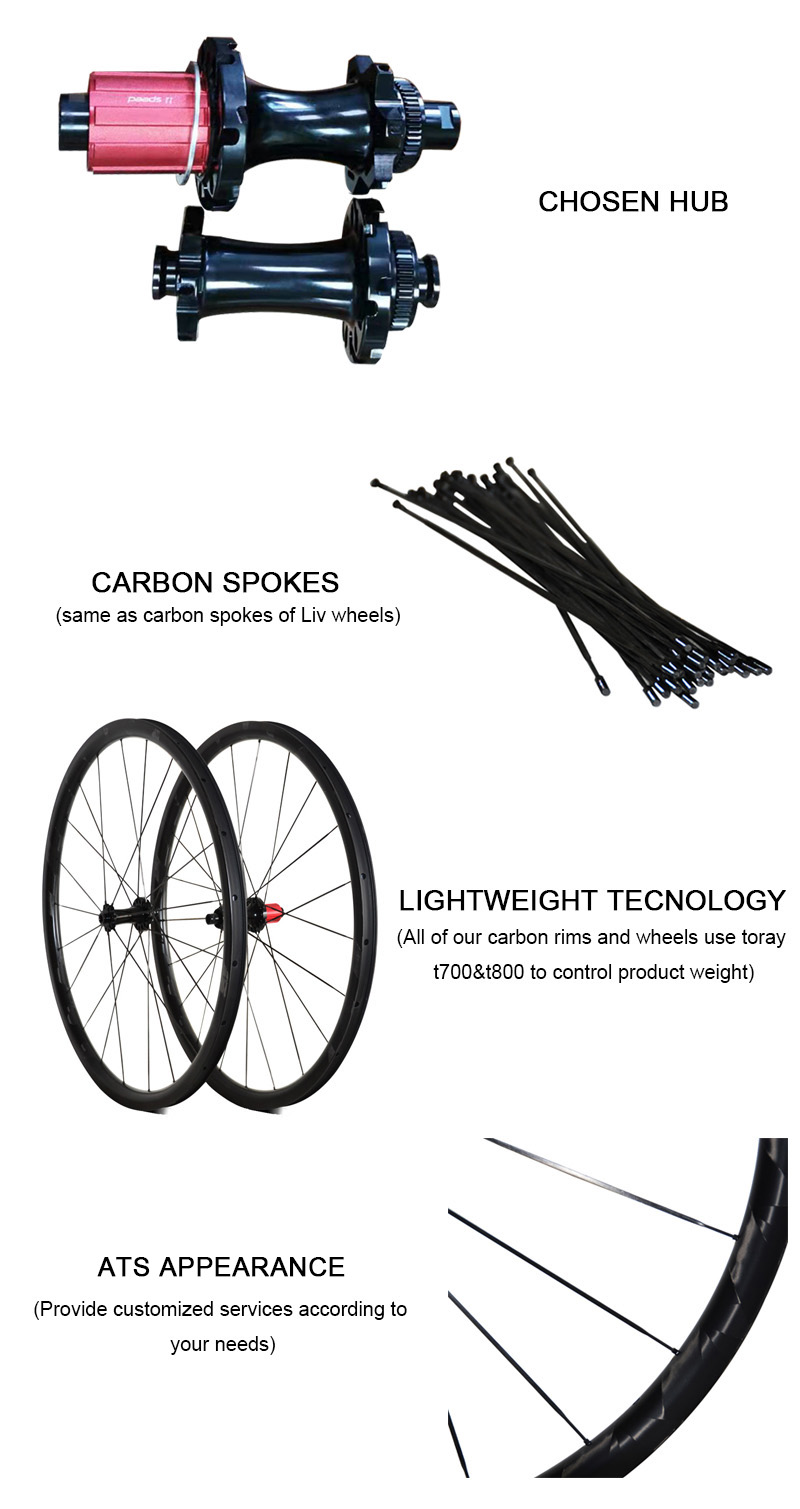

carbon fiber spokes wheels

Carbon Fiber Spokes Chosen Hub Road Bike Carbon Wheels Specification:

Model	Rim	Rim Type	Hub	Spokes	Brake	Front Count	Rear Count	Weight(+/-3%)
WH-RC38W-CC	RC38W	Clincher	Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1200g
WH-RC30S-CC	RC30S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1170g
WH-RC35S-CC	RC35S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1190g
WH-RC38S-CC	RC38S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1220g
WH-RC45S-CC	RC45S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1270g
WH-RT38W-CC	RT38W	Tubular	Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1040g
WH-RT30L-CC	RT30L		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1060g
WH-RT35L-CC	RT35L		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1100g
WH-RT40L-CC	RT40L		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1140g
WH-RT45L-CC	RT45L		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1160g
WH-RT30S-CC	RT30S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1000g
WH-RT35S-CC	RT35S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1030g
WH-RT38S-CC	RT38S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1040g
WH-RT45S-CC	RT45S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1100g
WH-RX30S-CC	RX30S	Tubeless	Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1170g
WH-RX35S-CC	RX35S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1190g
WH-RX38S-CC	RX38S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1220g
WH-RX38S-CC	RX45S		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1270g
WH-RX30L-CC	RX30L		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1180g
WH-RX35L-CC	RX35L		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1220g
WH-RX45L-CC	RX45L		Chosen Hub	Carbon Fiber Spokes	Disc Brake	21H	21H	1240g

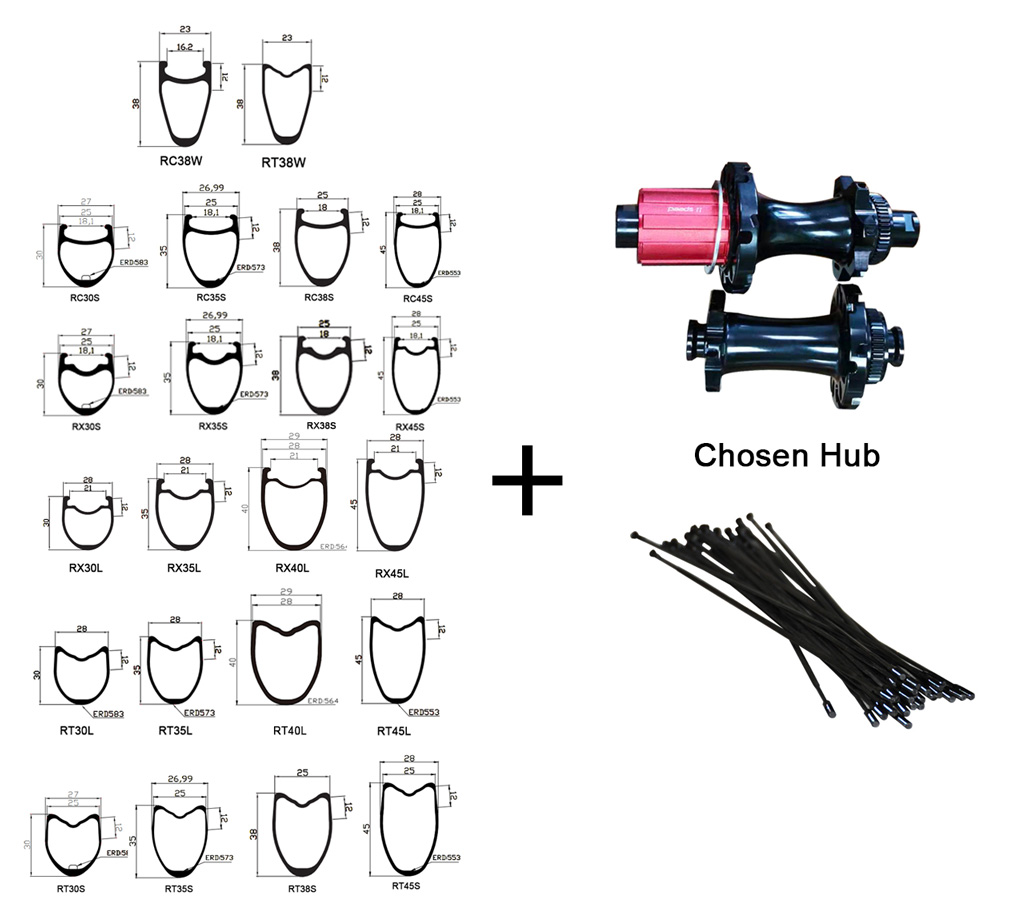

road bike wheels 700c

Wheel Building Technology:

Our carbon wheels are precise hand built, then trued by Holland Mechanics Pro Truer.

The perfect allocation of spoke tension in every spoke, and relatively high spoke tension give many advantages:

- High radial, lateral and torsional stiffness.

- Less spoke tension loss over time.

- Longer durability.

- Less maintenance needed.

If you have your own ideas or know more about carbon fiber spokes road wheels, please contact us(sales@top-fire.com) to discuss and provide you with customized services.
