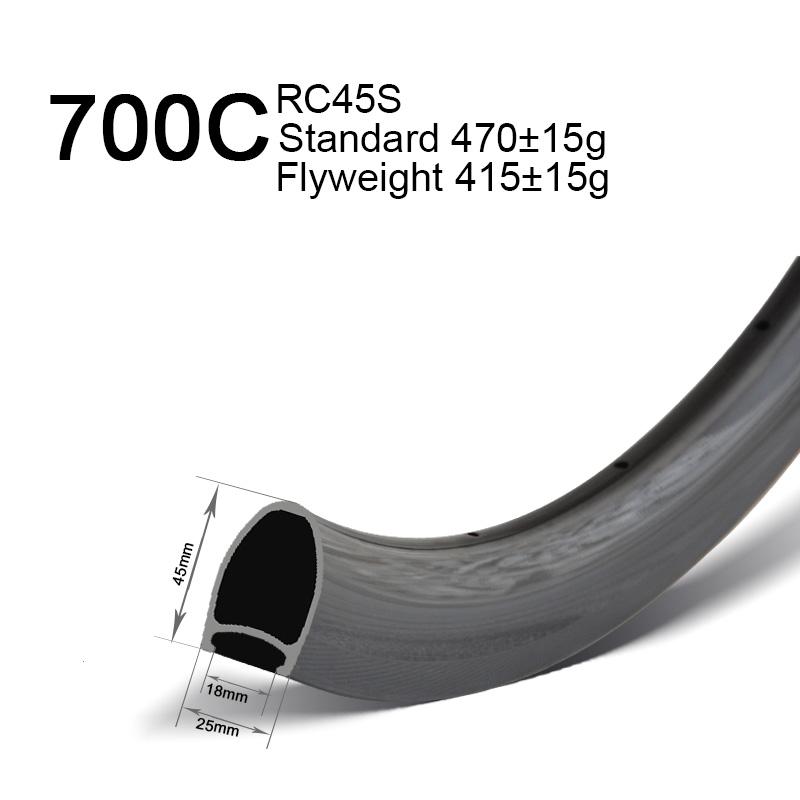

700C 25mm Width 45mm Depth Carbon Clincher Rims
Product Feature
- Super lioghtweight,25mm wide 45mm deep road bike rims 700c are constructed from Toray T700&T800 that structure minimize rotational weight.
- Carbon clincher rims have flyweight version and weight 415±15g.
- Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
- U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
- High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.
- Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.
Specification
|
Item NO.: |
RC45S |
|
Braking System: |
Rim Brake/Disc Brake |
|
Applicable Bicycle: |
Road Bicycles |
|
Appearance: |
UD/3K/12K |
|
Finishing: |
Matte/Glossy |
|
Material: |
Full carbon fiber (Toray T700 and T800) |
|
Spoke Hole: |
16H-36H |
|
Outer width: |
25mm |
|
Depth: |
45mm |
|
ERD: |
553mm |
|
Type: |
Clincher |
|
Weight: |
Standard:470±15g Flyweight:415±15g |
|
Standard: |
En Standard |
|
Assembly Hole Dia: |
8.5mm |
|
Spoke Hole Dia: |
4.5mm |
|
Valve Hole Dia: |
6.5mm |
|
Roundess: |
<0.25mm |
|
Flatness: |
<0.15mm |
|
Max Spoke Tension: |
>350kgf |
|
Weight limit: |
<125kg |

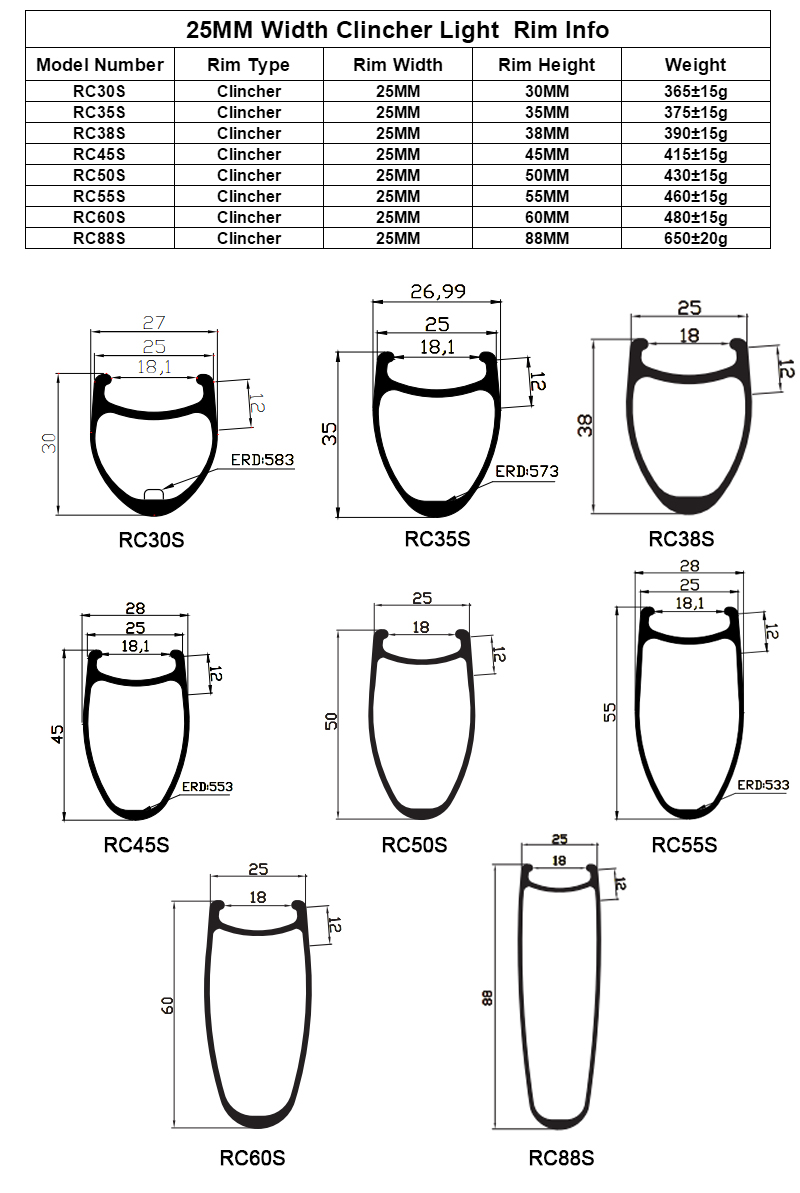

Geometry
Our 25mm Width Clincher Carbon Road Rims Info
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
Read More For Testing Of Carbon Rims By DCH Factory
