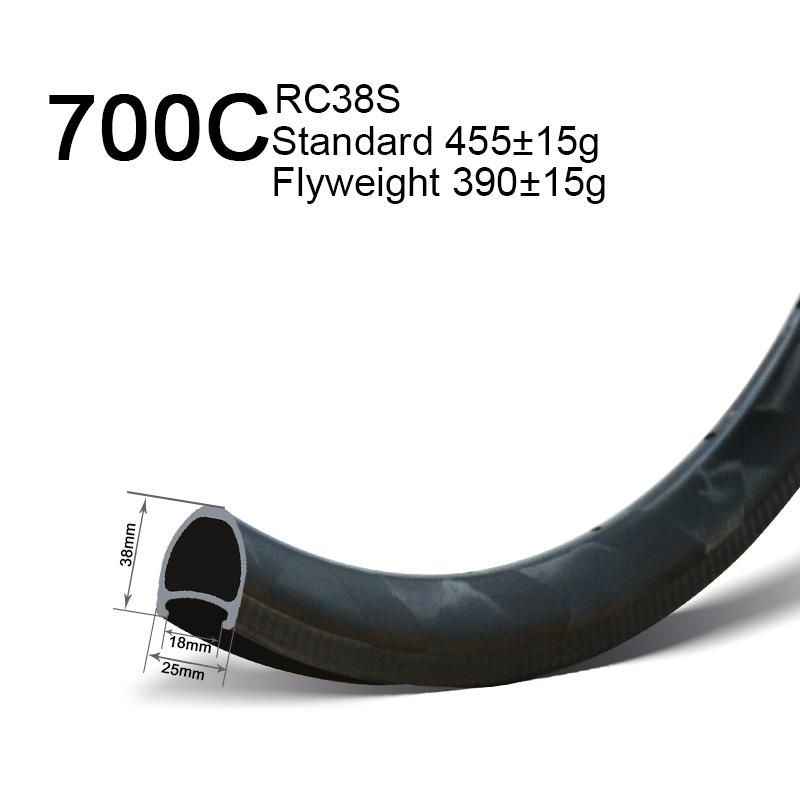

700C 25mm Width 38mm Depth Carbon Clincher Rims
Product Feature
- Super lightweight,700c 25mm wide 38mm deep carbon clincher rims are constructed from Toray T700 that structure minimize the rotational weight.
- This 700c clincher rim has flyweight version,weighs 390±15g.
- Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
- U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
- High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.
- Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.
Specification
Standard:455±15g Flyweight:390±15g
Weight limit：
Item NO.:
RC38S
Braking System:
Rim Brake/Disc Brake
Applicable Bicycle:
Road Bicycles
Appearance:
UD/3K/12K
Finishing:
Matte/Glossy
Material:
Full carbon fiber (Toray T700 and T800)
Spoke Hole:
16H-36H
Outer width:
25mm
Depth:
38mm
ERD:
567mm
Type:
Clincher
Weight:
Standard:
En Standard
Assembly Hole Dia:
8.5mm
Spoke Hole Dia:
4.5mm
Valve Hole Dia:
6.5mm
Roundess:
<0.25mm
Flatness:
<0.15mm
Max Spoke Tension:
>350kgf
<100kg

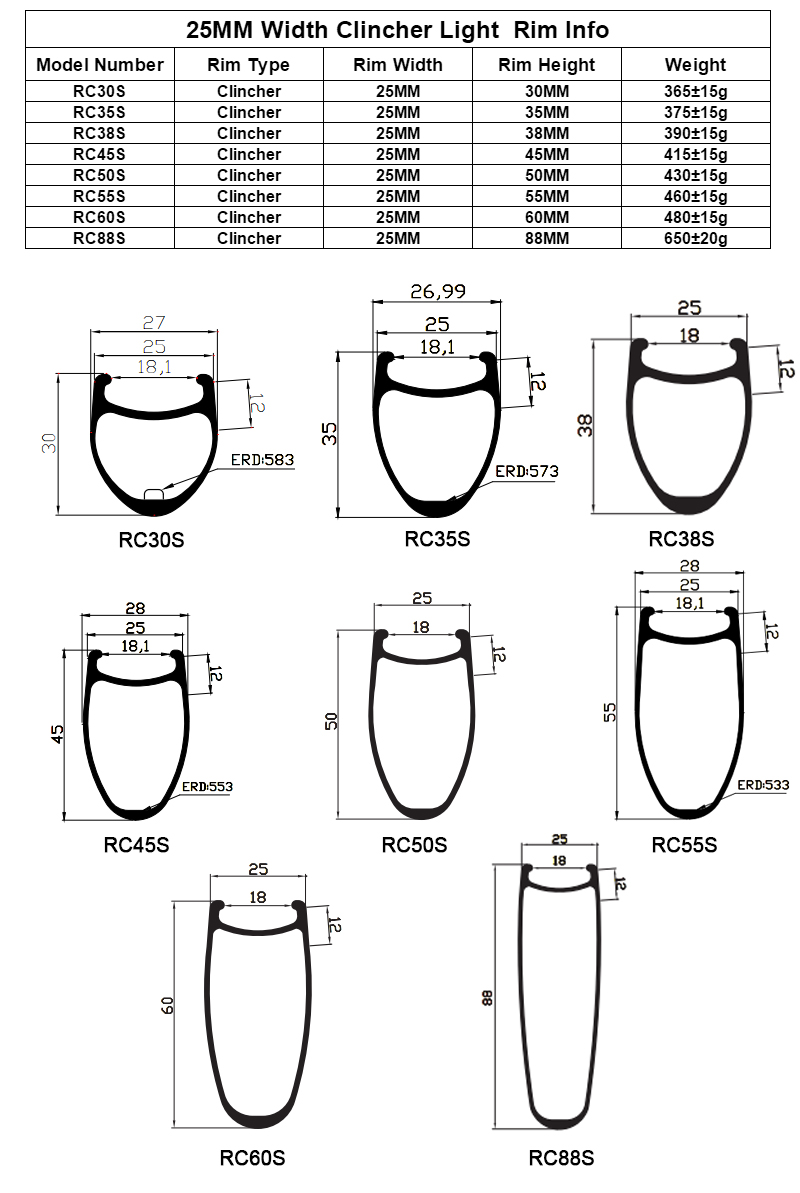

Geometry
Our 25mm Width Clincher Carbon Road Rims Info
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
Read More For Testing Of Carbon Rims By DCH Factory
