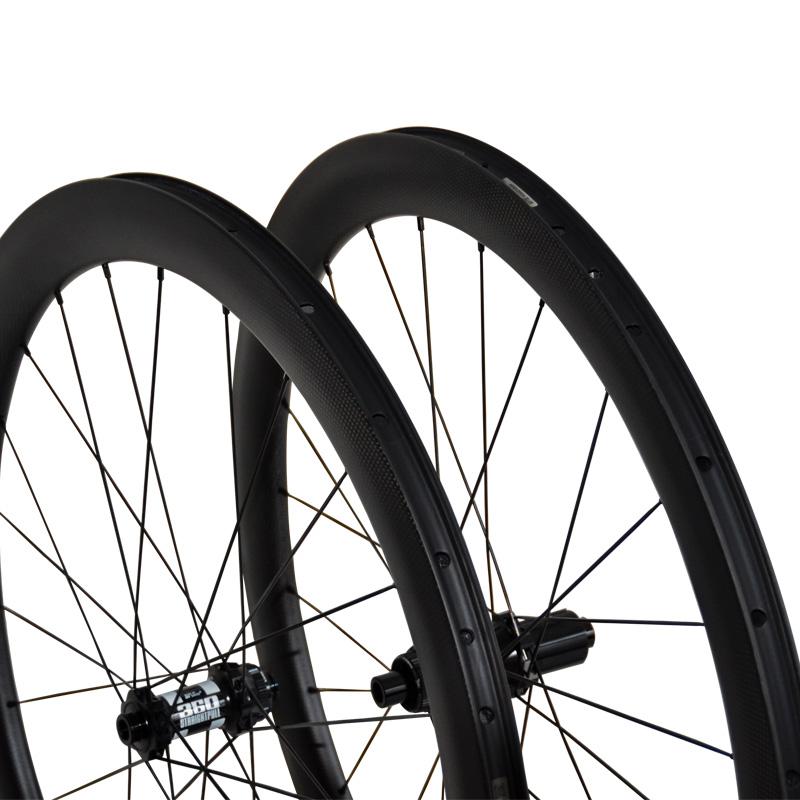

GoFast 700c DT Swiss 350 Hub 25mm Width 50mm Depth Tubeless Carbon Road Wheel Disc
Product Feature
- A strong and seriously wide yet lightweight carbon rim, with an aero-rounded profile for excellent handling and speed. The extra friction brake-track provides excellent braking, on even the longest descents and in the wet. The rim dimensions are wide at 27mm (19mm internal) which creates a great tyre profile, resulting in excellent grip and lower rolling resistance.
- 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
- UCI test.We have professional testing equipment.All our carbon rims and wheels can pass uci test.
Specification
|
Item NO.: |
WH-RX50S-DS |
|
Braking System: |
Disc Brake |
|
Applicable Bicycle: |
Road Bicycles |
|
Appearance: |
UD/3K/12K |
|
Finishing: |
Matte/Glossy |
|
Material: |
Full carbon fiber (Toray T700 and T800) |
|
Spoke Hole: |
20H 24H |
|
Rim Width: |
25mm |
|
Rim Depth: |
50mm |
|
Rim ERD: |
543mm |
|
Type: |
Tubeless |
| Front Wheel Weight: |
820±15g |
| Rear Wheel Weight: | 945±15g |
|
Hub: |
DT Swiss 350 |
|
Spokes: |
Sapim cx-ray |
|
Maximum Rider Weight: |
125kg |
|
Warranty: |
2 Years |
Rim Geometry

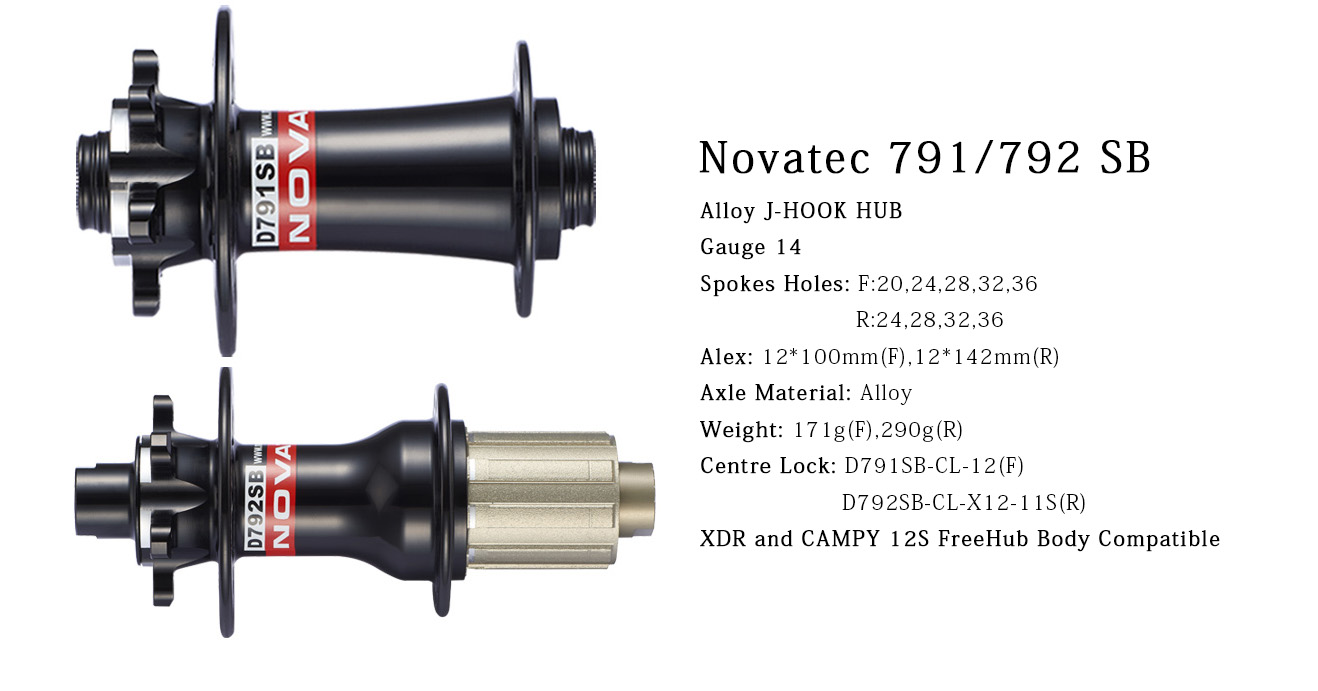

Hubs

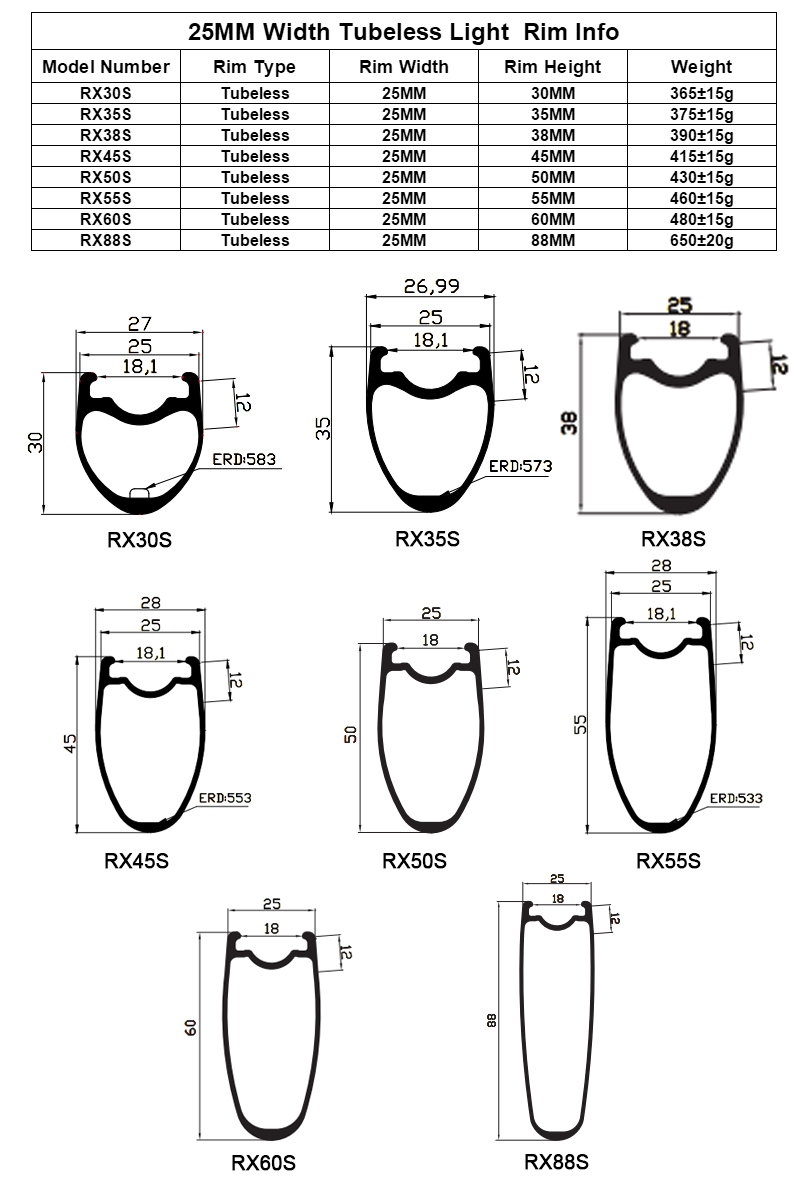

25mm Width Tubeless Carbon Road Rims Info

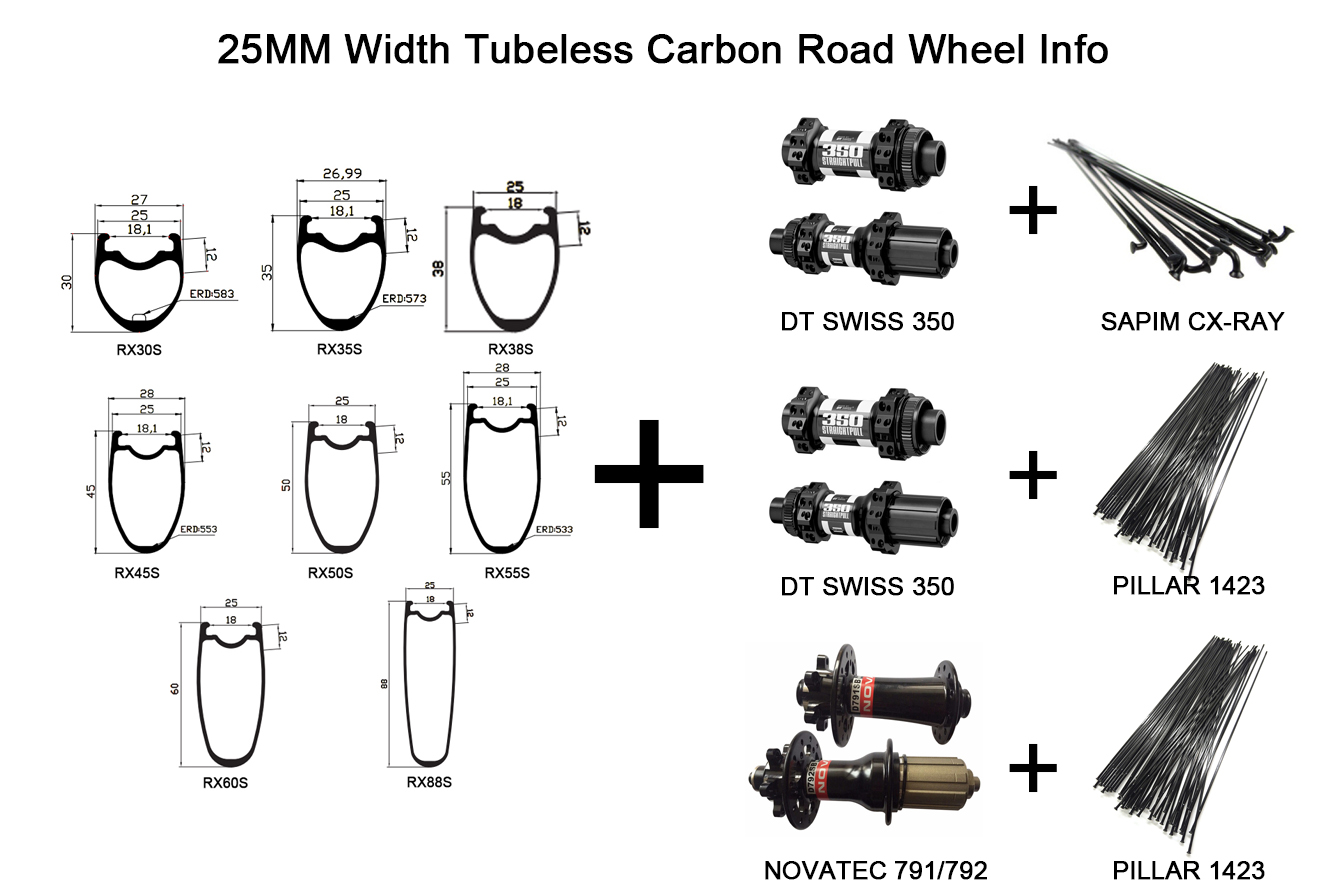

25mm Width Tubeless Carbon Road Wheels Info
Wheelset Overview:
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
