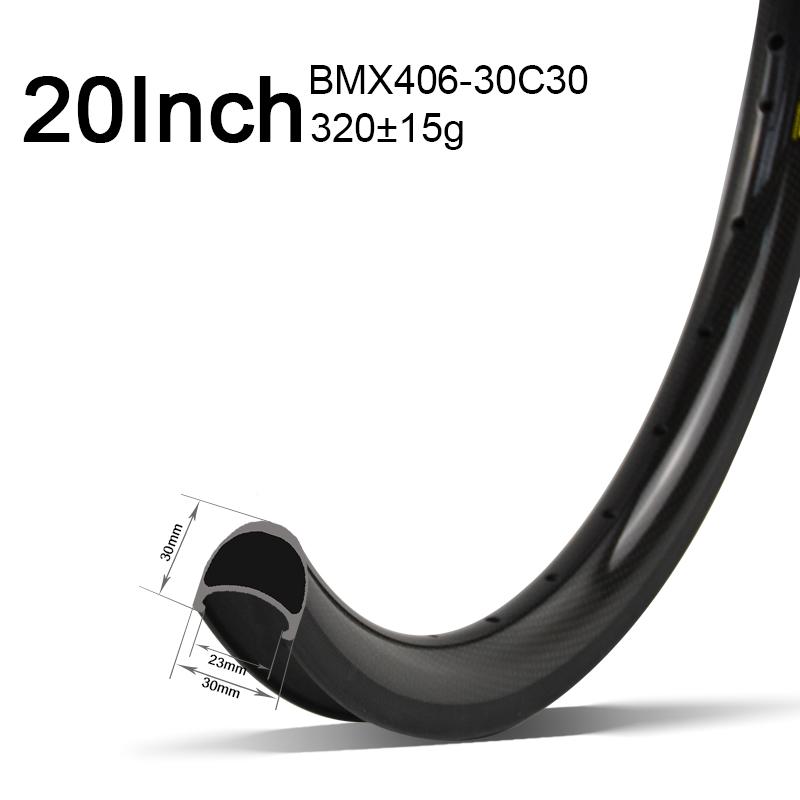

GoFast 20 Inch 30mm Width 30mm Depth 406 Carbon Clincher Rims For BMX Bike

20 inch bmx rims are constructed from Toray T700 & T800. 406 carbon clincher rim for bmx bike is 30mm width and 30mm depth.
  • Item no.:

    BMX406-30C30
  • Payment:

    Paypal, Bank Transfer, West Union
  • Product origin:

    Xiamen,China
  • Color:

    UD/3K/12K(Customized Painting Acceptable)
  • Shipping port:

    XIAMEN
  • Product Details

GoFast 20 Inch 30mm Width 30mm Depth 406 Carbon Clincher Rims For BMX Bike


Product Feature

  • We take advantage of the tremendous strength and stiffness properties of carbon fiber in our BMX rims.
  • We worked with one of the top Carbon Fiber manufacturers in the world to ensure we were using only the best material and to make sure the rim was tough enough to comfortably give to any of our team riders.
  • 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.


Specification

Item No.

BMX406-30C30
Rim type:
20 inch bmx bike rims
Material:
Toray T700&T800 carbon fiber
Appearance:
UD / 3K / 12K
Finish:
Matte / Glossy
Depth:
30mm
Width:
30mm
ERD:
369mm
Tire Type:
Clincher
Vavle:
Standard Schrader / Presta valv
Drills:
28H , 32H , 36H
Tire Size:
20"-406*1.35-1.95

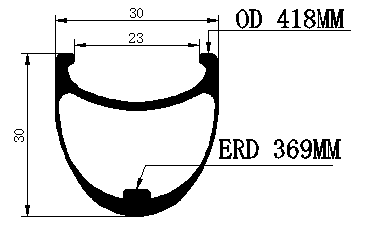

Geometry

406 carbon bmx rims


BMX406-30C30 Overview


Manufacturing process:

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory



100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory
