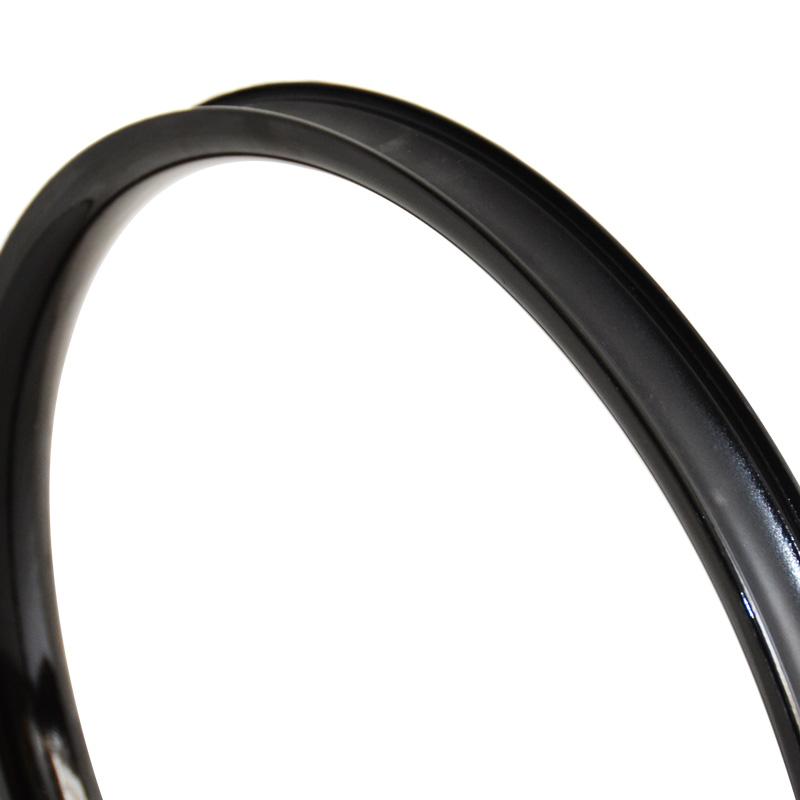

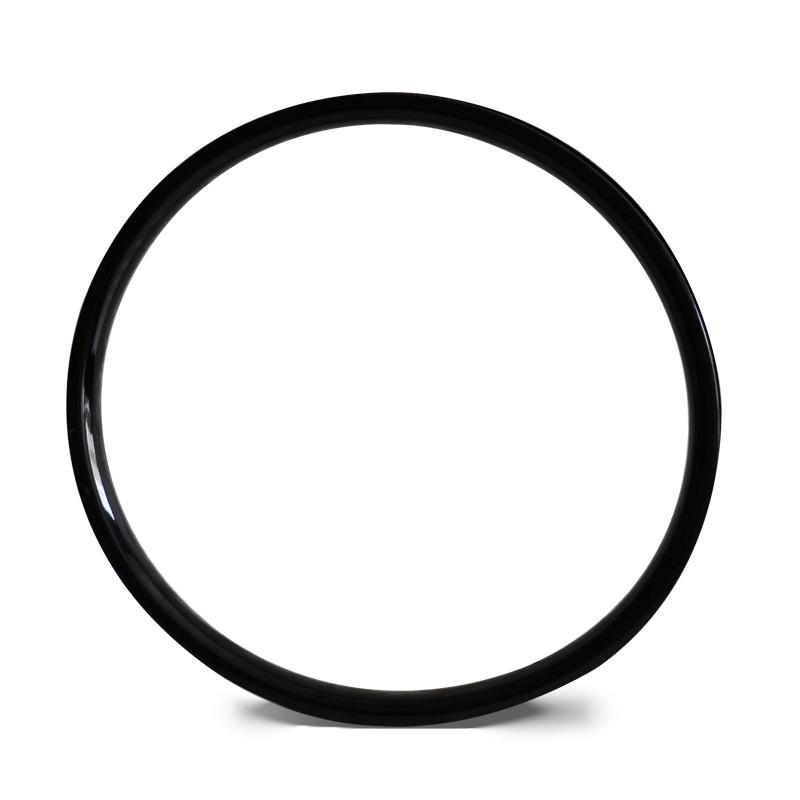

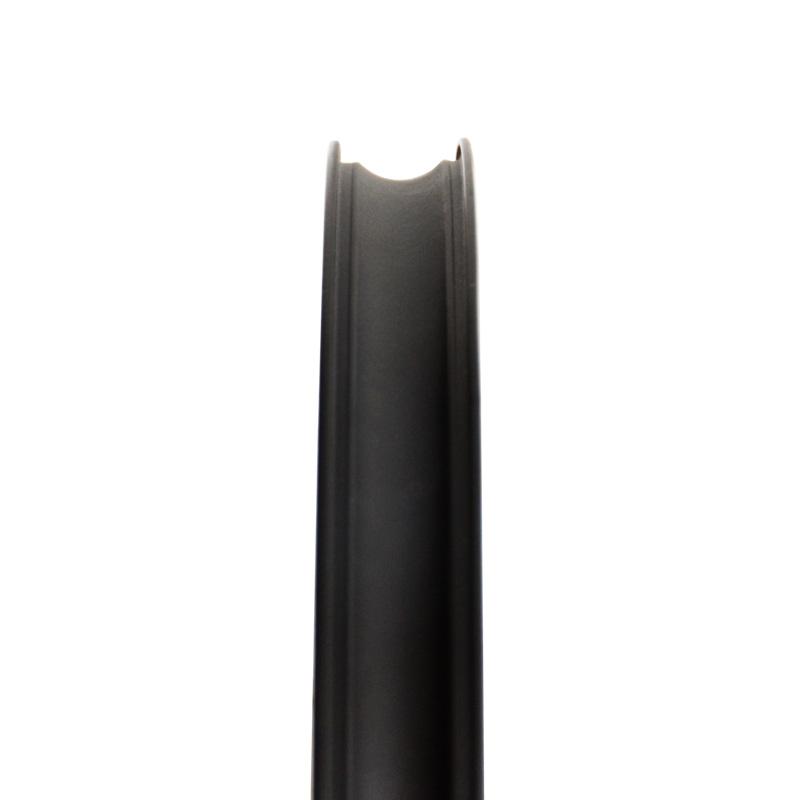

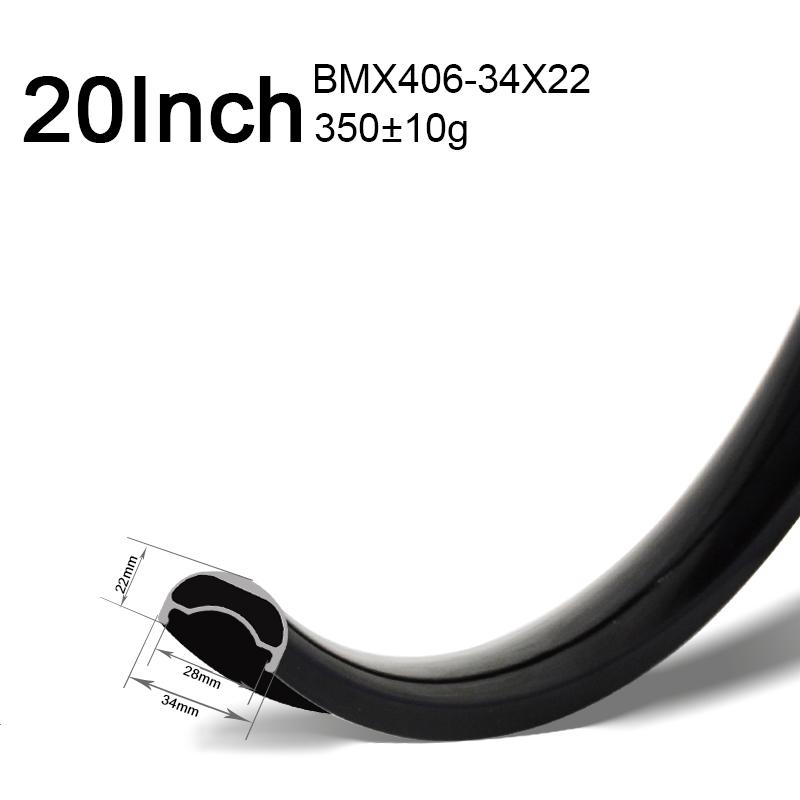

20 Inch 34mm Width 22mm Depth 406 Carbon BMX Rims
Product Feature
- Super lightweight,34mm wide 20mm deep carbon 406 bmx rims 20 inch are constructed from Toray T700&T800 that structure minimize rotational weight.
- 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
- Specific resin rims brake track is designed for BMX race and street. Carbon specific pad required.
- Extremely stable brake surface.
- 255°C superhigh TG resin system
Specification
|
Item No. |
BMX406-34X22 |
|
Rim type: |
20 inch bmx bike rims |
|
Material: |
Toray T700&T800 carbon fiber |
| Brake System: | Disc Brake/Rim Brake |
|
Appearance: |
UD / 3K / 12K |
|
Finish: |
Matte / Glossy |
|
Depth: |
22mm |
|
Width: |
Outer width:34mm, Inner width:28mm |
|
ERD: |
382.4mm |
|
OD: |
418mm |
|
ETRTO: |
406mm |
|
Weight:
|
350±15g 450±15g(Downhill Professional Version) |
|
Vavle: |
Standard Schrader / Presta valve |
|
Drills: |
28H , 32H , 36H |

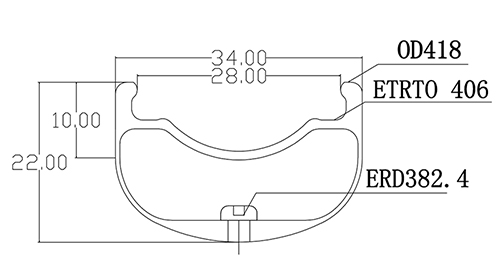

Geometry
Completed bicycles with BMX406-34X22:
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
